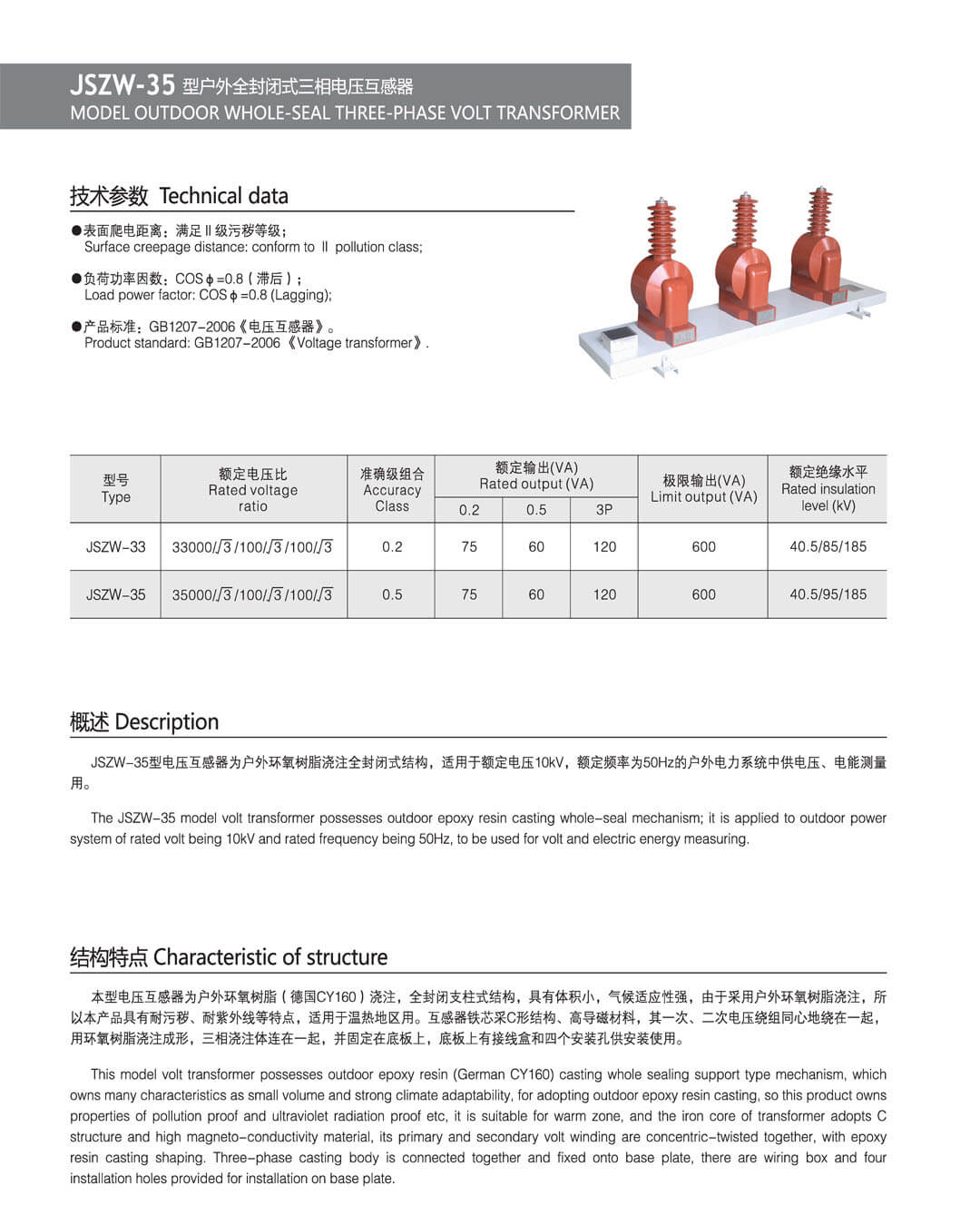

JSZW-35 voltage transformer is outside the epoxy resin casting fully enclosed structure, apply to the rated voltage 10 kv, rated frequency 50 hz outdoor power supply voltage, power measurement in the power system.
Category: Switchgear & HV PT
Brand: JGGY Electric
Model: JSZW-35
Power: 35KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

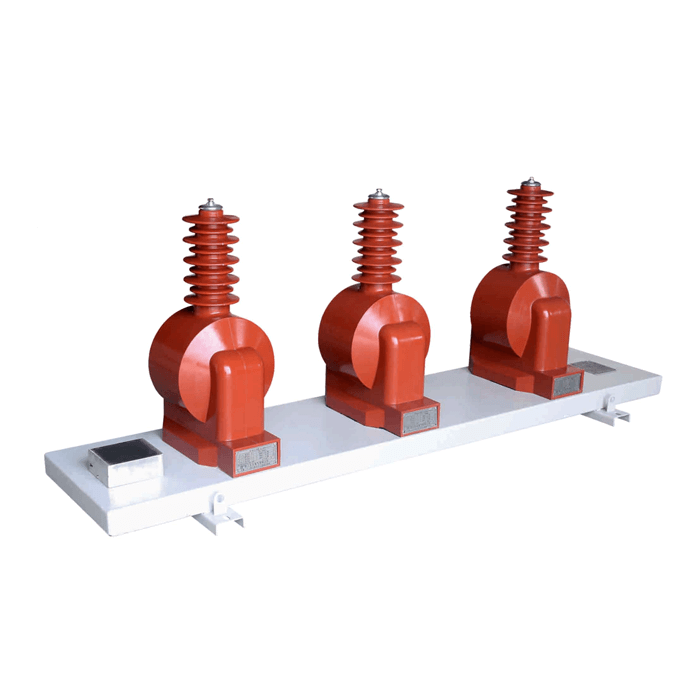

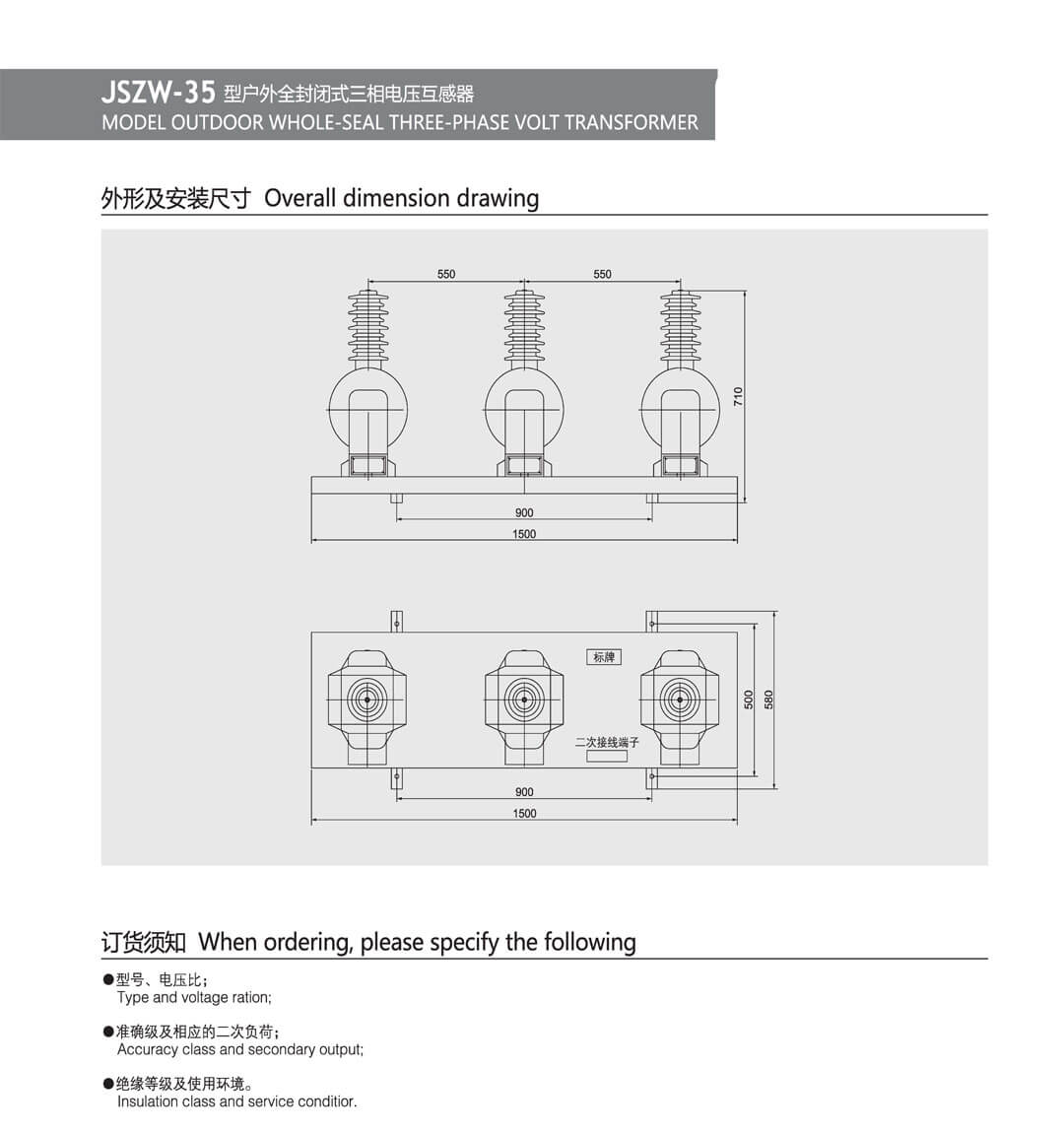

The voltage transformer is outdoor CY1680 (Germany) epoxy resin casting, fully enclosed type structure, the advantages of small volume, strong adaptability to the climate, because use outdoor epoxy resin casting, so the product has the characteristics of filth resistance, resistance to ultraviolet, suitable for warm area. Transformer core C shape structure, high permeability material, the first time, with secondary voltage winding around together, with epoxy resin casting forming, three-phase together, casting body and fixed on the floor, floor with junction box and four installation holes for installation.
