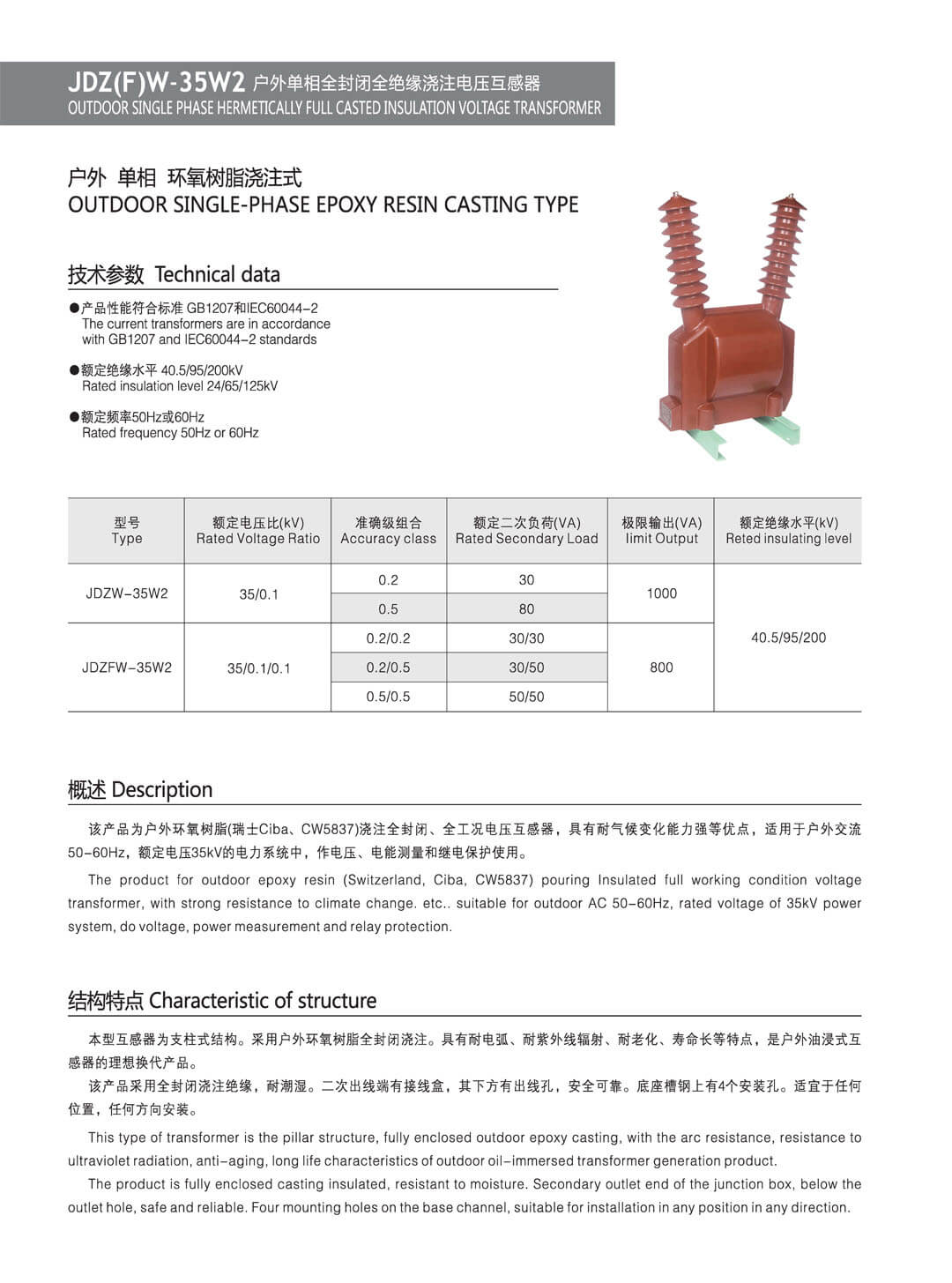

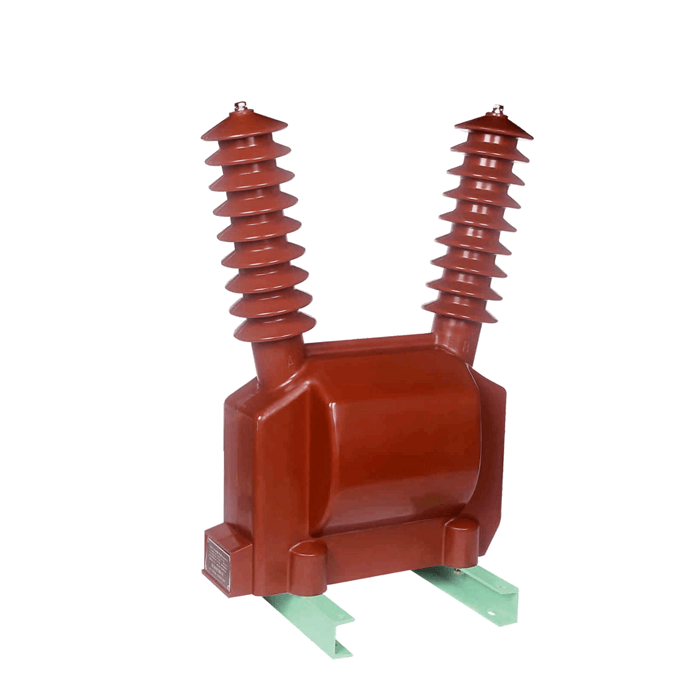

The voltage transformer for outdoor (Switzerland Ciba, CW5837) epoxy resin casting, voltage transformer is fully enclosed, all condition has the advantages of strong resistance to climate change.
Category: Switchgear & HV PT
Brand: JGGY Electric
Model: JDZW-35
Power: 35KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
The voltage transformer for outdoor (Switzerland Ciba, CW5837) epoxy resin casting, voltage transformer is fully enclosed, all condition has the advantages of strong resistance to climate change, suitable for outdoor ac 50 to 60 hz, rated voltage 35 kv power system, for the use of voltage, electric energy measurement and relay protection.

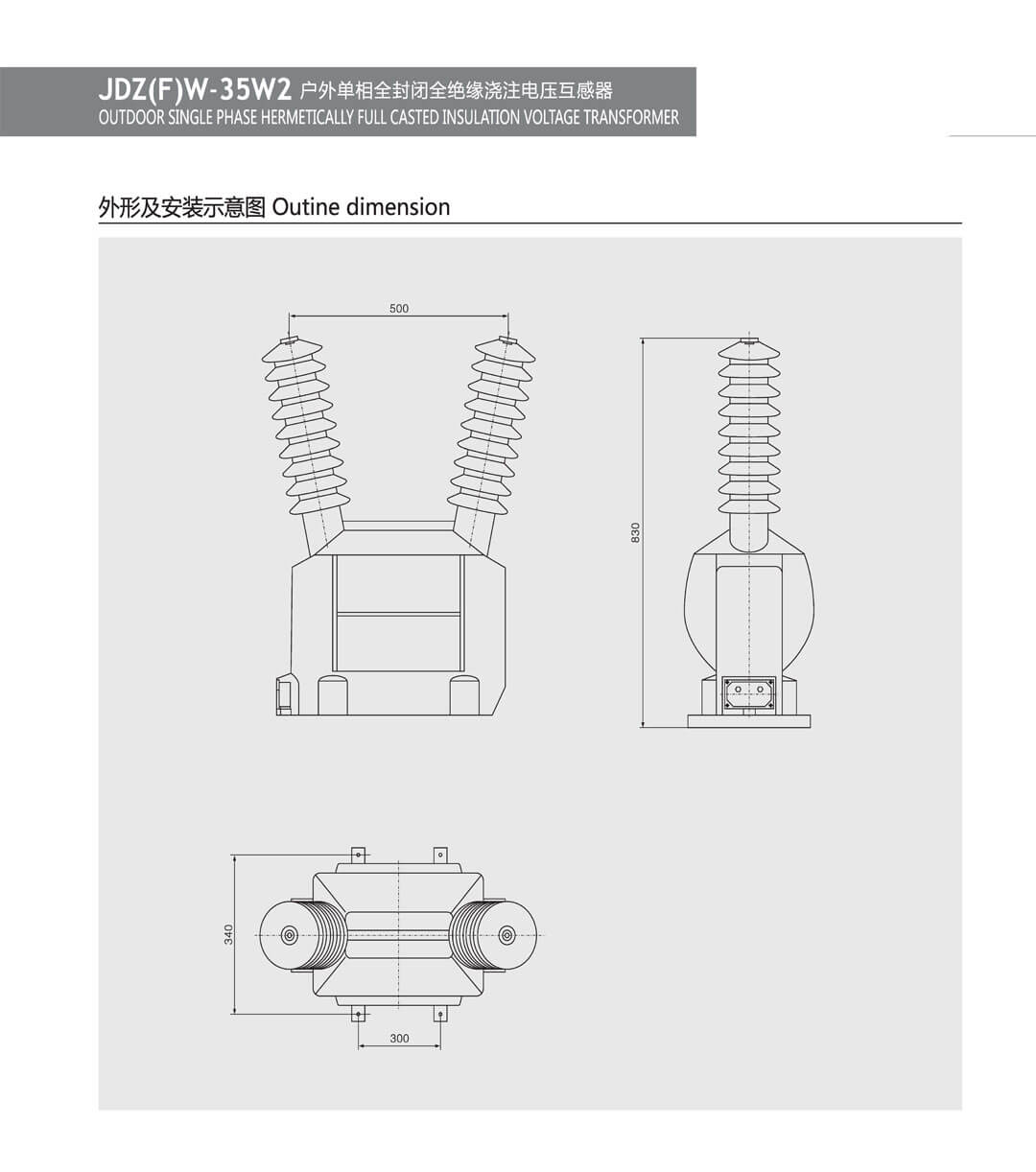

The transformer is the pillar type structure. Adopting outdoor epoxy resin casting. Arc resistance, ultraviolet radiation resistance, ageing resistance, long service life etc., is an ideal outdoor oil overflow type transformer.
The product is fully enclosed casting insulation and moisture proof. The secondary outlet end terminal box, the outlet hole is below, safe and reliable. On the base of channel steel has four mounting holes. Suitable for any position, any direction installation.
