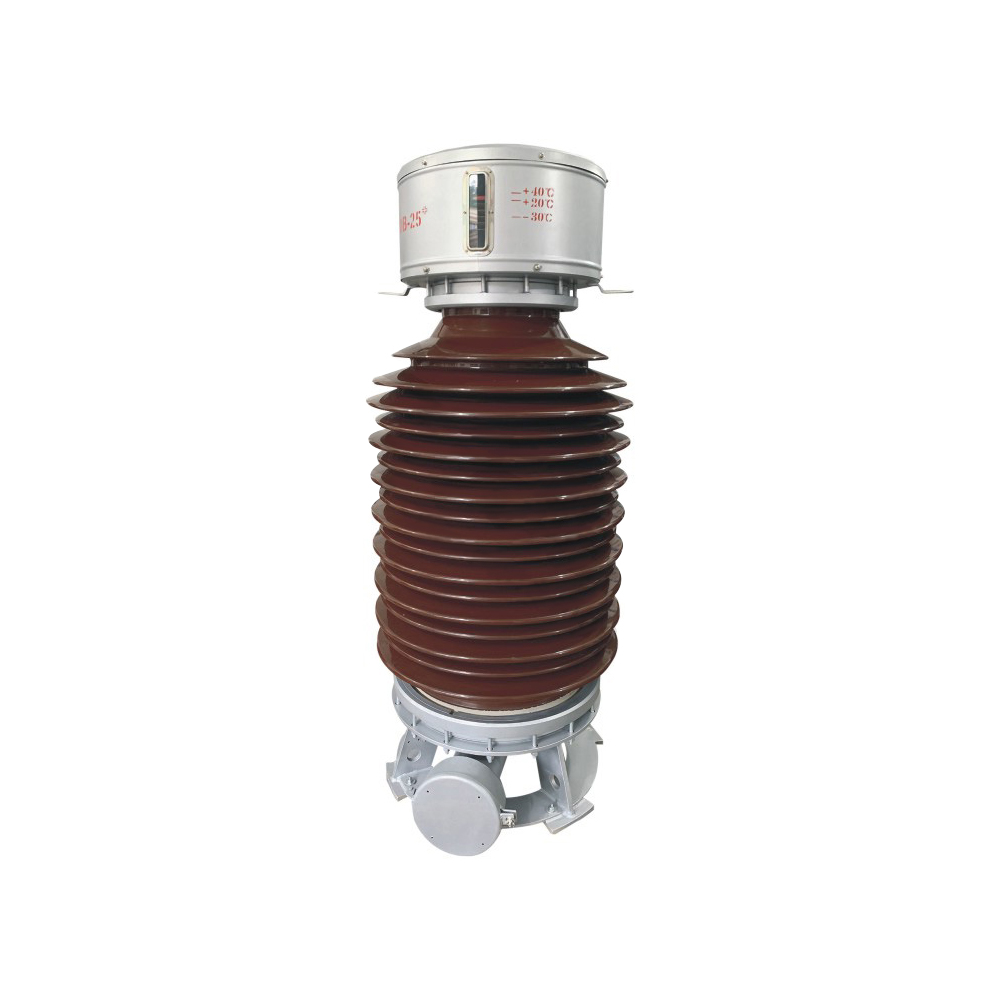

Product overview
This series of voltage transformers includes JDCF-60W2, JDCF-66W2DCF-725W2), JDCF-110W2DCF-126W2), JDCF-120W2DCF-123W2), JDCF-132W2JDCF-138W2DCF-145W2), etc.
It is used for electrical measurement and relay protection in 60-145KV, 50-60Hz power systems. The product meets the requirements of the national standard GB1207 "Electromagnetic Voltage Transformer" and the International Electrotechnical Commission standard IEC60044-2 "Electromagnetic Voltage Transformer".
This series of voltage transformers can provide five-coil products according to customer requirements.
Features
1. Using limit seal, all seals are not exposed to the air, the sealing performance is better and the service life is longer.
2. Using poured flange porcelain sleeve, the overall mechanical strength of the product is good.
3. Stable insulation performance, small partial discharge and low dielectric loss.
4. Low magnetic density and strong resistance to ferromagnetic resonance.
5. The iron core has good performance, low loss, good excitation characteristics and wide load range.
