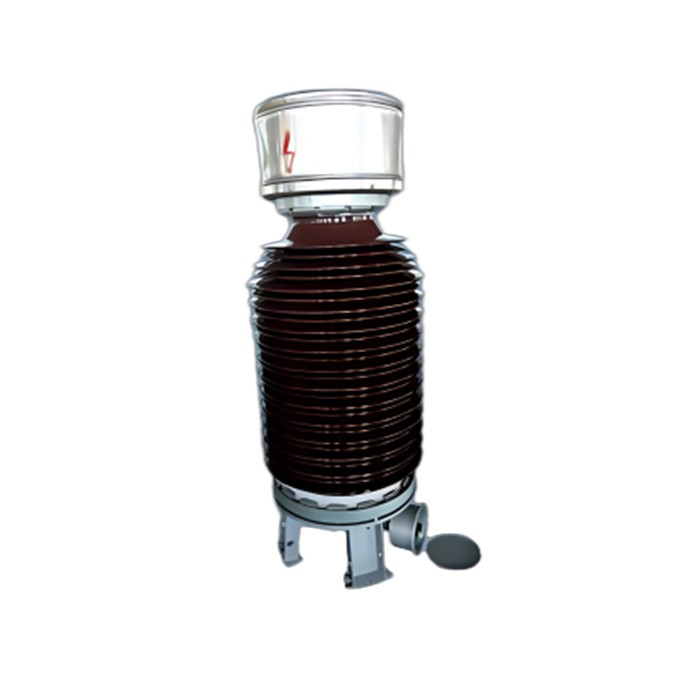

Oil-immersed type voltage transformer
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: JDC6-110GYW
Power: 110KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Introduction
JDC6-110 type voltage transformer has single-phase three -winding cascade insulating structure, it is applicable to neutral point effective earthing systems of rated frequency 50Hz and 110kV, used for voltage, electric energy measuring and relaying protection.
The product has good excitation characteristic and strong antiresonance capability, has reliable running, s convenient for maintenance, the top is installed with stainless steel metal corrugated expander, featured with full-sealed structure.
JDC6-11ow is suitable for areas of altitude up to 1000m;
JDC6--110 G is suitable for areas of altitude up to 3000m
