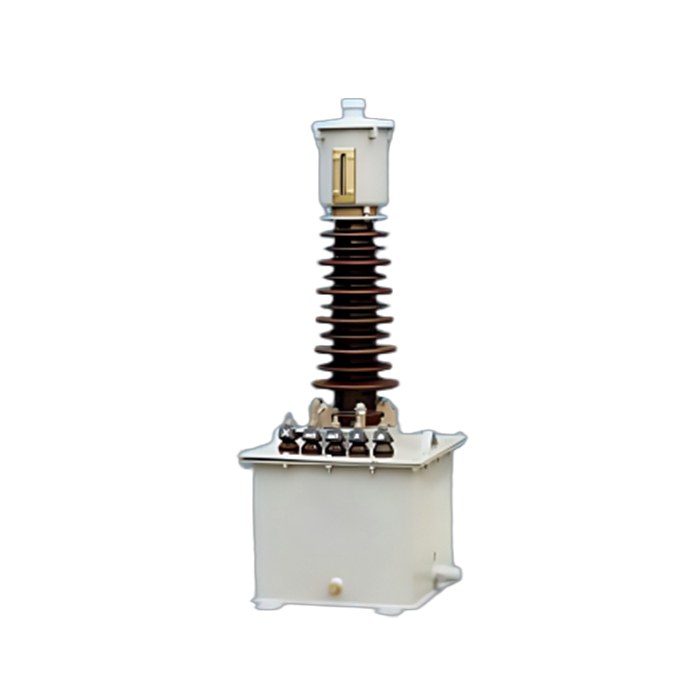

Voltage transformer type
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: JDJ(J)2-35
Power: 35KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Description
The voltage transformer of the type JDJ(J)2-35 is single has and oil-filled product. lt is used for metering electric energy, voltage control and relay protection in the electric system up to rated frequency 50Hz or 60Hz and rated voltage 35kV.

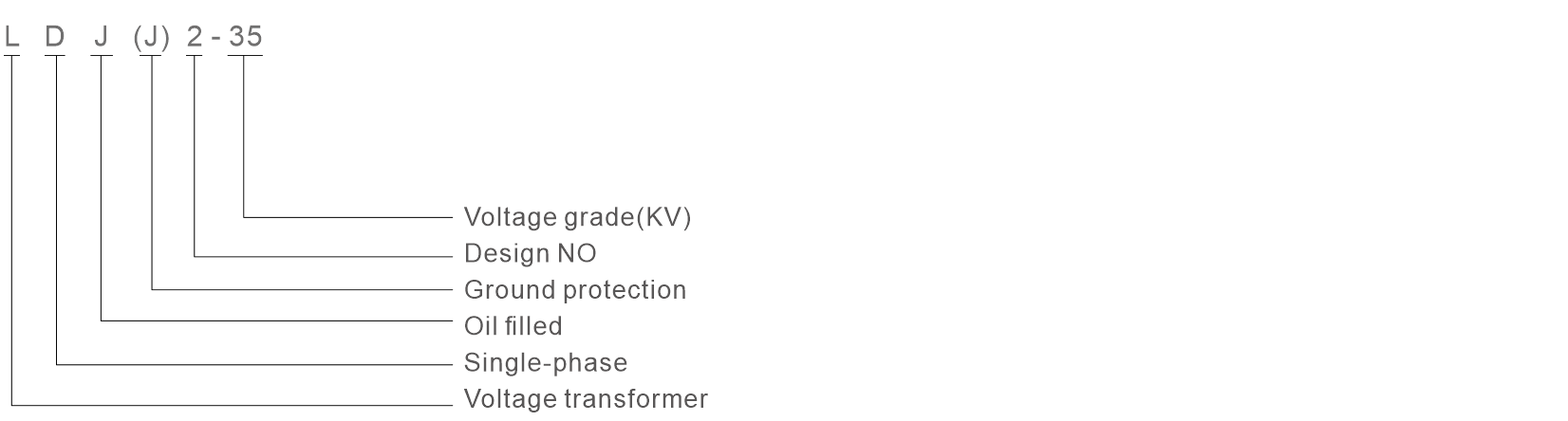

Type description

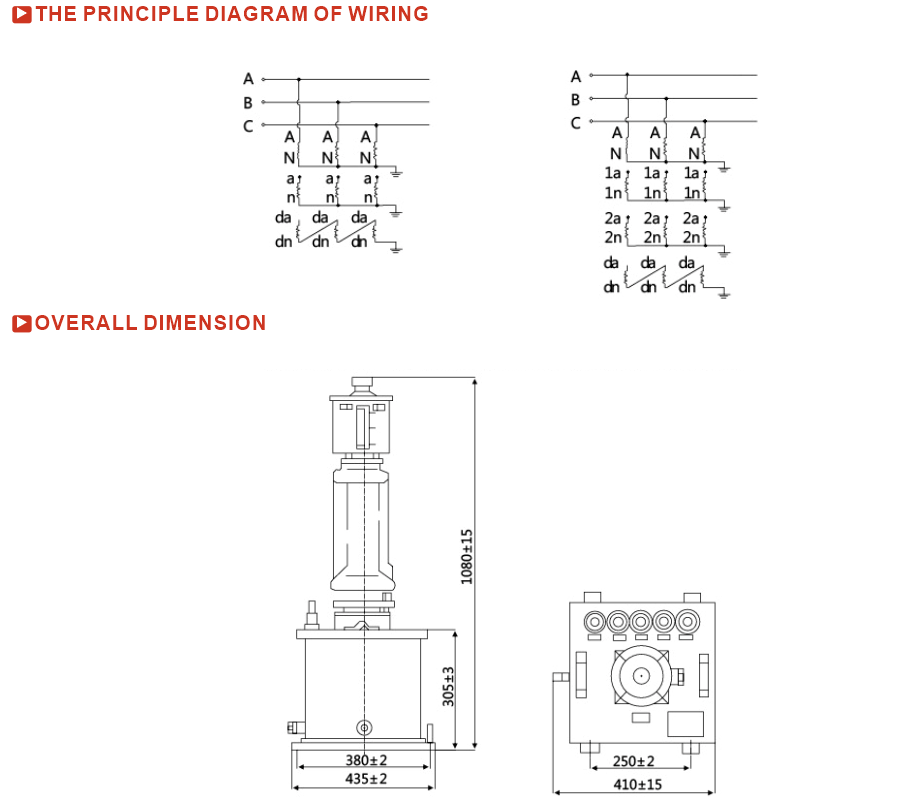

Construction
This voltage transformer has three poles and the iron core is made of sheet The body is fixed on the box cover by clamping There have the primary and secondary busing also on the box cover.

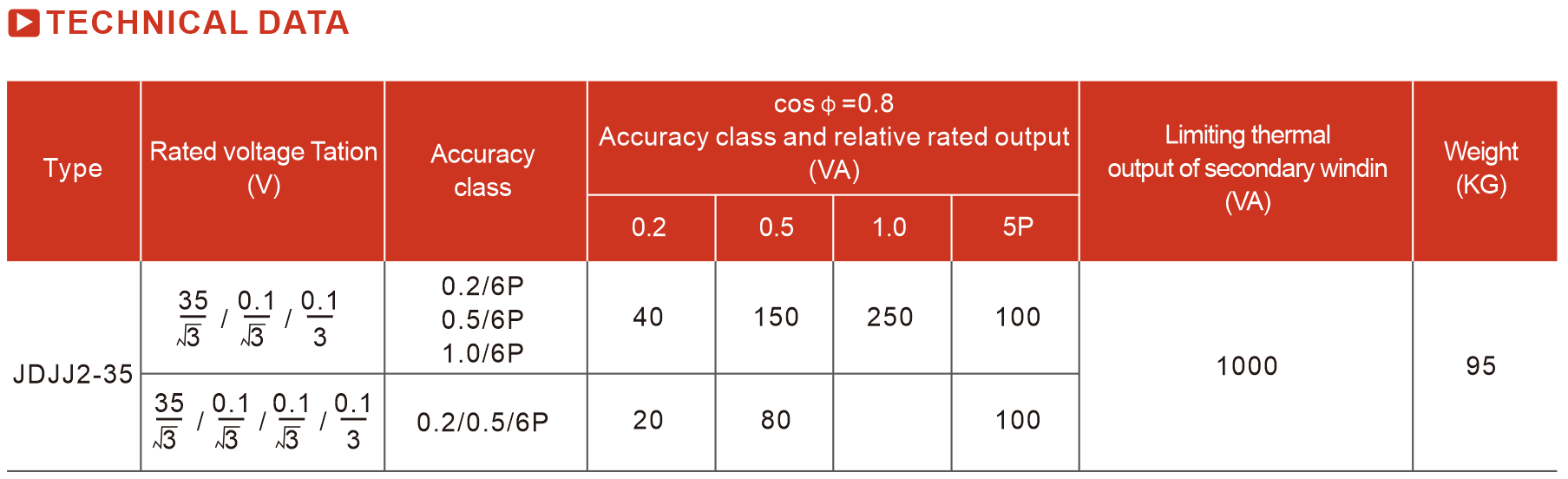

Technical data
The voltage transformers are in accordance GB1207 and IEC168 standards;
Rated insulation level 40.5/95/200kV;
Rated frequency 50Hz or 60Hz;
Ambient temperature-45°C ~+45°C;
Pollution class IV.
Note:
if user' s data go beyond the above-mentioned scope, they may be subject to an agreement between manufacturer and
purchaser.
