The series voltage transformer suitable for rated frequency 50 hz or 60 hz, rated voltage 35 kv indoor unit of electricity, power system, the connection between facies to do electric energy measurement and relay protection, secondary measuring winding for 100/3 v
Category: Switchgear & HV PT
Brand: JGGY Electric

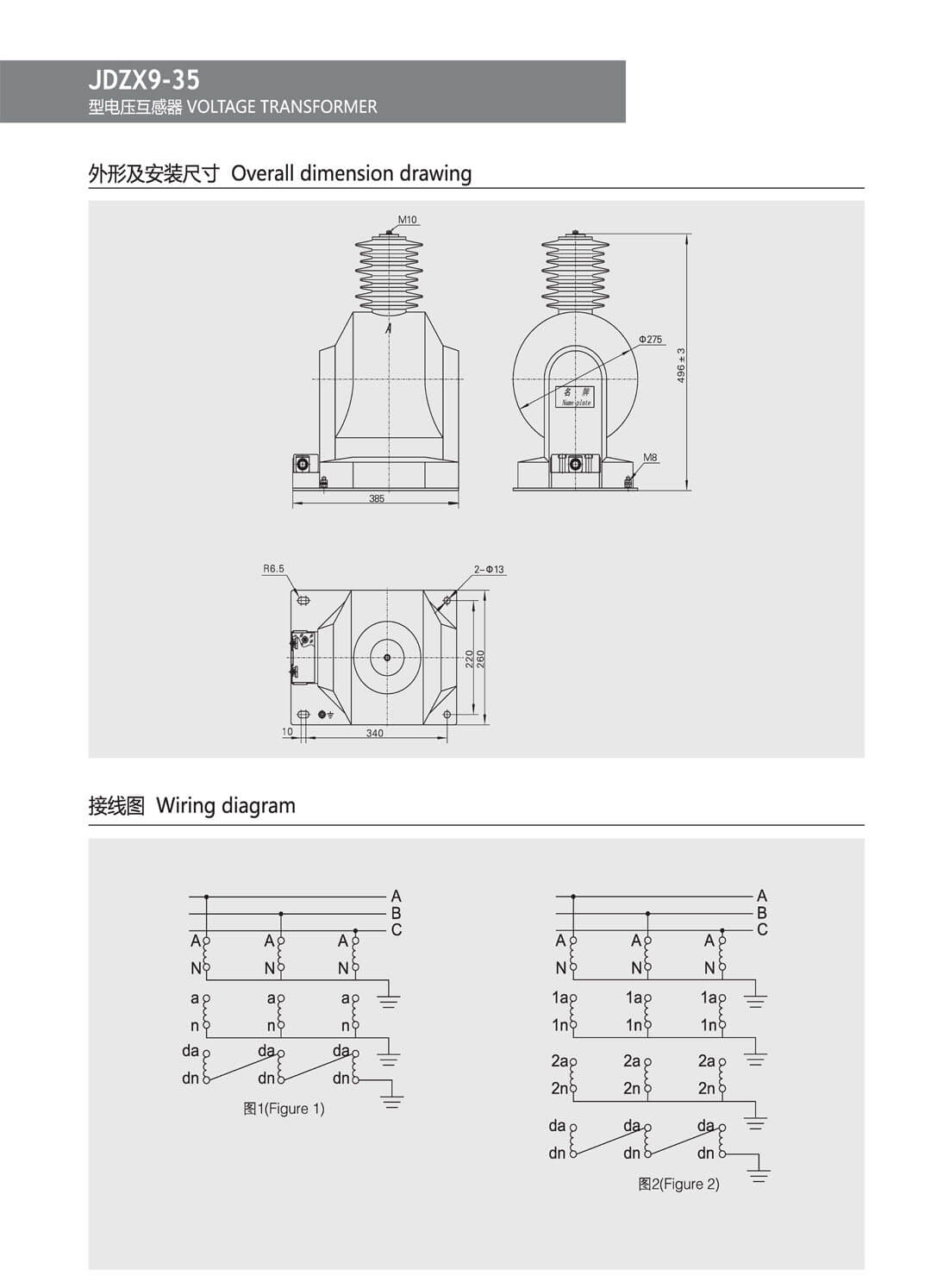

Model: JDZX9-35
Power: 35KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

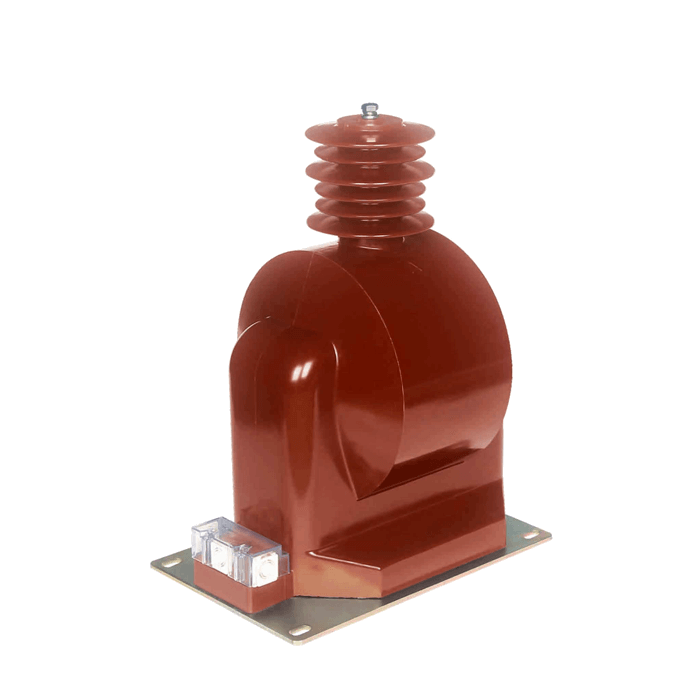

The series voltage transformer using epoxy resin casting forming. To the pillar type fully enclosed structure. Suitable for rated frequency 50 hz or 60 hz, rated voltage 35 kv indoor unit of electricity, power system, the connection between facies to do electric energy measurement and relay protection, secondary measuring winding for 100/3 v, output voltage of power supply can measure, three playscript with stage directions product of residual voltage windings into triangles. Used as a grounding protection. When the transformer under the rated voltage excitation, able to bear external short circuit 1 SEC and no damage.
