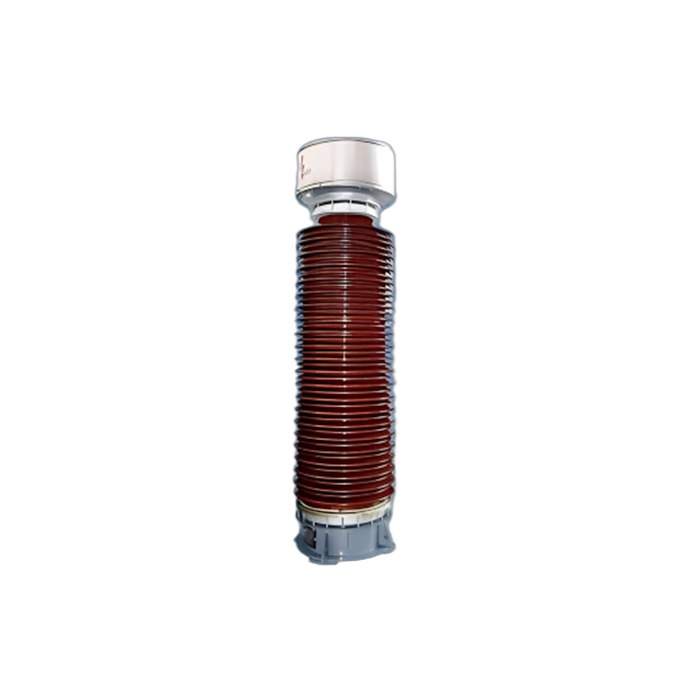

Oil-immersed type voltage transformer
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: JDC5-220W1
Power: 220KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Introduction
JDC5- 220 type voltage transformer is of full-sealed cascade oil- paper insulated, single-phase three- winding outdoor used, is applicable to neutral point effective earthing systems of rated frequency 50Hz and 220k, used for voltage and electric energy measuring and relaying protection.
Top of the product is installed with stainless steel metal expander, has reliable running, is convenient for maintenance, the product has good excitation characteristic and strong antiresonance capability.
This type of product is applicable to areas of ambient temperature within-30°C +40°C.
