The voltage and current combination transformer (also known as the electric energy metering box) system for ac 50 hz, rated voltage 35 kv three-phase power lines to A, B, C three-phase active and reactive power energy metering, respectively. Suitable for rural outdoor substation. Small change, power distribution can also be used for industrial enterprises. This product with electric meter for three-phase four-wire system active and reactive power meter.
Category: Switchgear & HV PT
Brand: JGGY Electric
Model: JLSZYO-35W
Power: 35KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

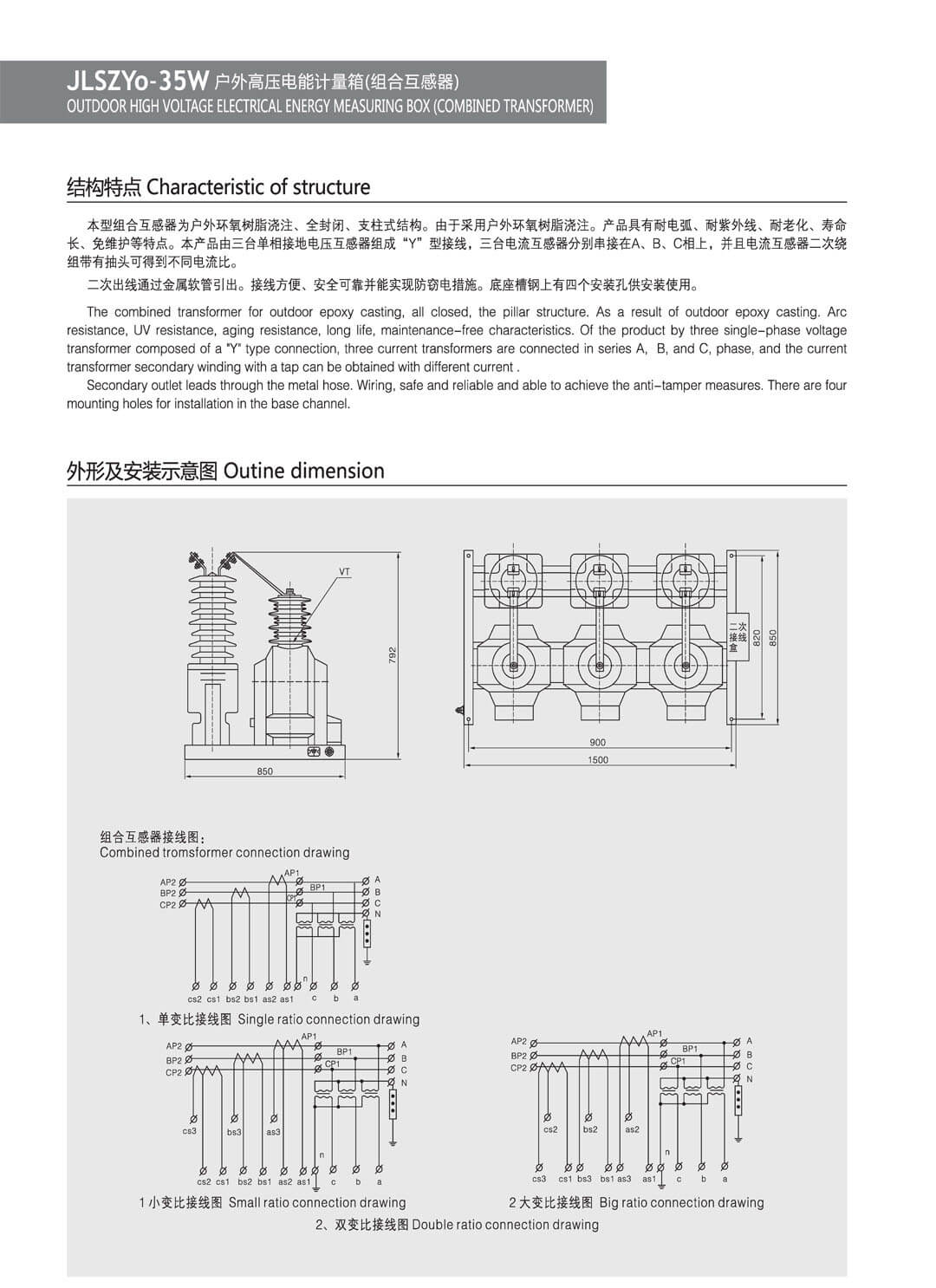

Outdoor epoxy resin casting, the combined transformer is fully enclosed, pillar type structure. As a result of outdoor epoxy resin casting. Products have electric arc resistance, ultraviolet resistance, aging resistance, long service life, maintenance free, etc. This product is composed of three sets of single-phase grounding voltage transformer "y" type connection, three stage current transformer are concatenated in A, B, C, and current transformer secondary winding with tap can get different current ratio.
