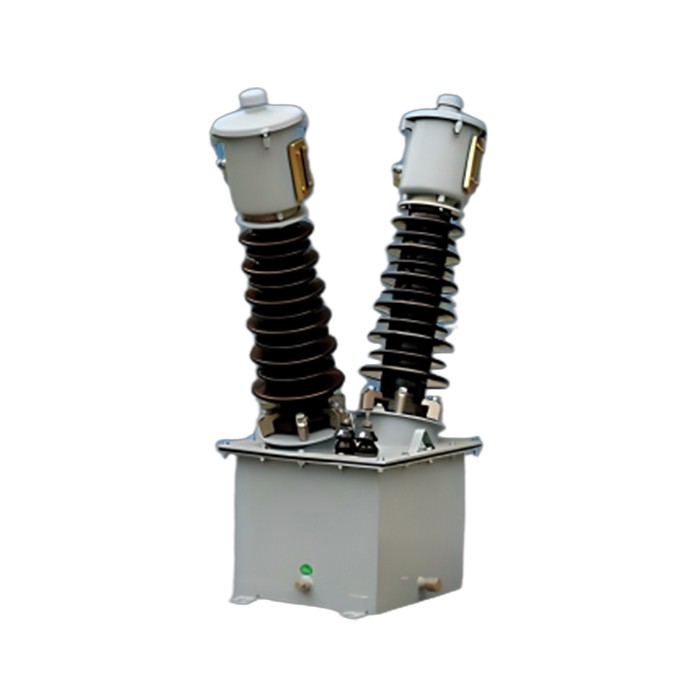

Oil-immersed type voltage transformer
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: JDJ2-35GYW
Power: 35KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Introduction

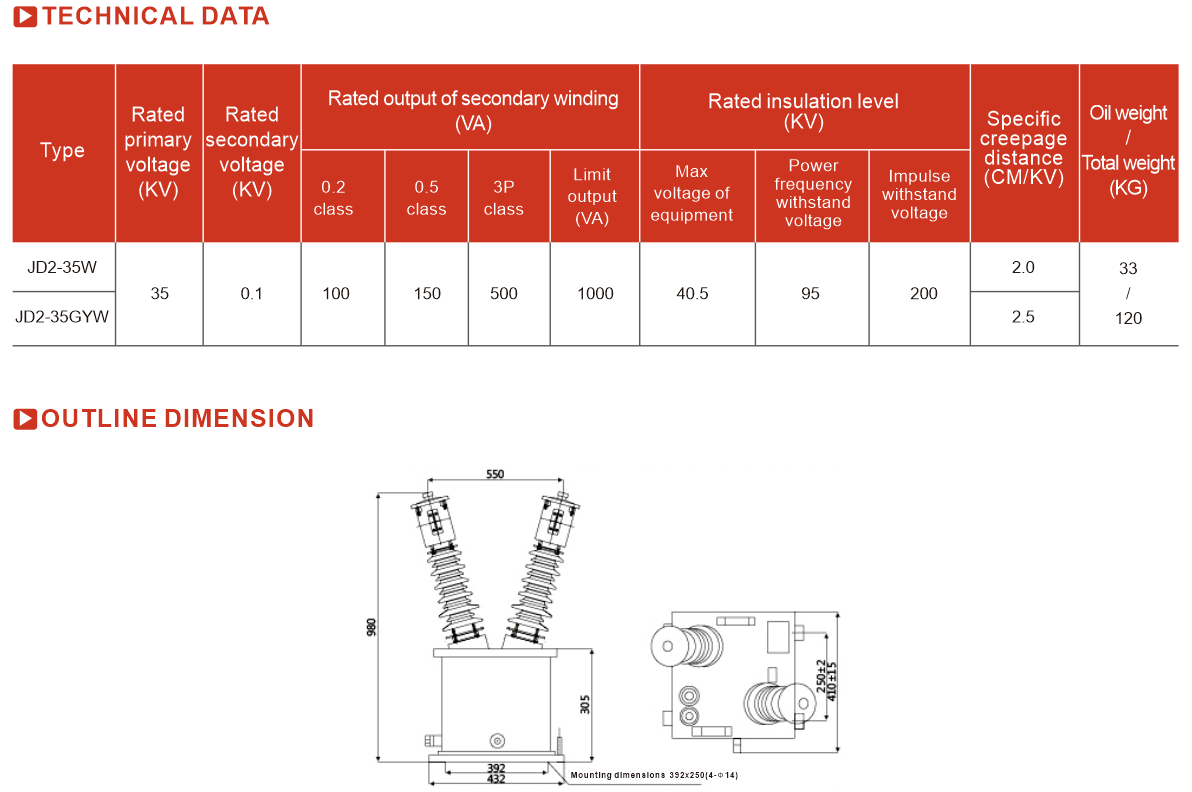

This type of transformer is applicable to 50 Hz, 35 kV power systems and is used for voltage transformation, electric energy measuring and replaying protection. The product is suitable for outdoor or indoor use, using sites JD2-35Wtype for areas of altitude up to 10om,JD2-35G type for areas of altitude up to 3000m, ambient temperature variation should be within -30°C ~ +40°C, technical parameters as follows:
