The IACM-50A overhead switch, placed at the end of a line in a tree-like HVA network structure, can isolate a cluster of substations for work to be carried out on the downstream line. This device complies with Type I of the NF C 64-140 standard of 01/1990.
Category: Switchgear & High Voltage LBS
Brand: JGGY Electric
Model: ISAR-S/IACM
Power: 12KV/17.5kV/24kV/36kV/ 400A/630A/1250A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Outdoor Switch-disconnector(IACM)LBS-12~36/400-50
1. Overview

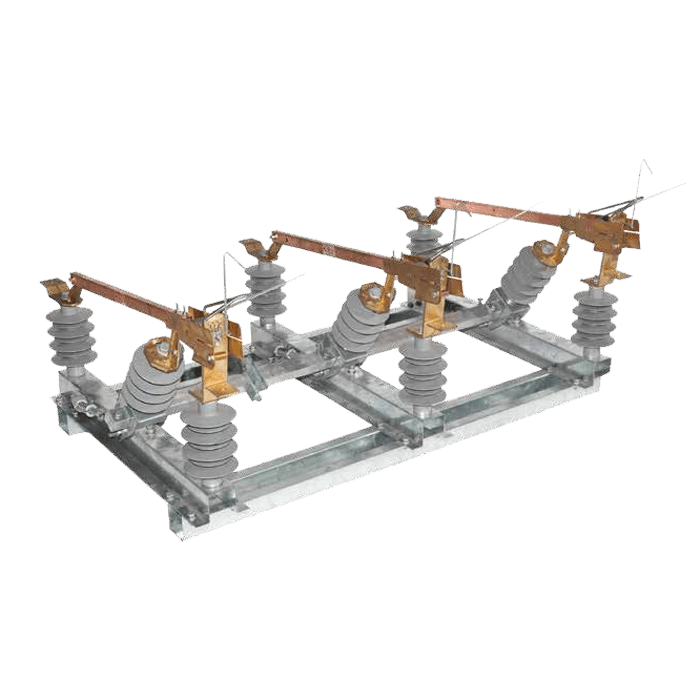

LBS-12~36/400-50A (IACM -12~36/400-50A) is a new type of load switch designed and manufactured with advanced technology. This load switch is composed of an isolation gate knife, arc rod, etc. When the current is interrupted, the arc rod stores energy and moves quickly to open the circuit, lengthening the arc and cooling it with air extinguish it. The speed of the arc contact movement is not affected by the speed of manual operation, and it has the principle of rapid arc extinguishing after reaching safe break, with the advantages of simple structure, less maintenance work, strong arc extinguishing ability, high insulation level of the break, and high reliability, reaching the level of similar products at home and abroad. The switch can be used for radial, ring network lines and transformer circuits (used with high-voltage current limiting fuses short-circuit protection) or for current-free isolation. This series of switches is designed and manufactured in accordance with the following standards:
IEC 60265-1 High-Voltage Switches - Part 1: Switches for Rated Voltages Above 1 kV and Less Than 52 kV
IEC 62271-1 High-voltage switchgear and controlgear – Part 1: Common specific ations for alternating current switchgear and controlgear
IEC 62271-103 HIGH-VOLTAGE SWITCHGEAR AND CONTROLGEAR - PART 103: SWITCHES FOR RATED VOLTAGES ABOVE 1 KV UP TO AND INCLUDING 52 KV
2. Environmental Conditions for Use
Ambient air temperature for use: ≤40 ℃/-30 ℃, with a daily temperature difference not exceeding 32K; Altitude:≤2000m Air pollution level: Grade IV to GB5585 Article Maximum wind speed: Wind pressure not exceeding 700Mpa Seismic capacity: Earthquake intensity not 8 degrees Load: Ice thickness not exceeding 10mm
3.Technical Parameters
NO. | ltem | Unit | Data | ||||
1 | Rated voltage | KV | 12 | 17.5 | 24 | 36 | |
2 | Rated current | A | 200/400/630/1250 | ||||
3 | Rated active load breaking current | A | 50 | 50 | 50 | 50 | |
4 | Rated No-load transformer breaking current | A | 2.5 | 2.5 | 2.5 | 2.5 | |
5 | Rated No-load line breaking capacity | A | 10 | 10 | 10 | 10 | |
6 |
1min power frequency withstand voltage | phase to phase, to earth | KV | 42 | 45 | 55 | 95 |
across open contacts | KV | 48 | 55 | 69 | 105 | ||
7 |
Lightning impulse withstand voltage | phase to phase, to earth | KV | 75 | 95 | 125 | 170 |
across open contacts | KV | 85 | 105 | 145 | 195 | ||
8 | Rated short-time withstand curent | KA | 12.5 | 12.5 | 12.5 | 12.5 | |
9 | Rated short-circuit duration | S | 1 | 1 | 1 | 1 | |
10 | Rated peak withstand current | KA | 31.5 | 31.5 | 31.5 | 31.5 | |
11 |
Mechanical life | Times | 2000 | 2000 | 2000 | 2000 | |
12 | Manual operating torque | Nm | ≤200 | ≤200 | ≤200 | ≤200 | |
13 | Contact opening distance | mm | >500 | >60 | >800 | >1030 | |
14 | The position of the contact just closed is skewed | mm | >2/3 | >2/3 | >2/3 | >2/3 | |
15 | Contact pressure | N | 200 | 200 | 200 | 200 | |
16 | Three phase closing at different stages | mm | <3 | <3 | <3 | <3 | |
17 | Distance between charged bodies and relative ground | mm | >160 | >200 | >260 | >330 | |
18 | Main loop resistance | uΩ | ≤150 | ≤150 | ≤150 | ≤150 | |
3.Technical Parameters
NO. | ltem | Unit | Data | ||||
1 | Rated voltage | KV | 12 | 17.5 | 24 | 36 | |
2 | Rated current | A | 200/400/630/1250 | ||||
3 | Rated active load breaking current | A | 50 | 50 | 50 | 50 | |
4 | Rated No-load transformer breaking current | A | 2.5 | 2.5 | 2.5 | 2.5 | |
5 | Rated No-load line breaking capacity | A | 10 | 10 | 10 | 10 | |
6 |
1min power frequency withstand voltage | phase to phase, to earth | KV | 42 | 45 | 55 | 95 |
across open contacts | KV | 48 | 55 | 69 | 105 | ||
7 |
Lightning impulse withstand voltage | phase to phase, to earth | KV | 75 | 95 | 125 | 170 |
across open contacts | KV | 85 | 105 | 145 | 195 | ||
8 | Rated short-time withstand curent | KA | 12.5 | 12.5 | 12.5 | 12.5 | |
9 | Rated short-circuit duration | S | 1 | 1 | 1 | 1 | |
10 | Rated peak withstand current | KA | 31.5 | 31.5 | 31.5 | 31.5 | |
11 |
Mechanical life | Times | 2000 | 2000 | 2000 | 2000 | |
12 | Manual operating torque | Nm | ≤200 | ≤200 | ≤200 | ≤200 | |
13 | Contact opening distance | mm | >500 | >60 | >800 | >1030 | |
14 | The position of the contact just closed is skewed | mm | >2/3 | >2/3 | >2/3 | >2/3 | |
15 | Contact pressure | N | 200 | 200 | 200 | 200 | |
16 | Three phase closing at different stages | mm | <3 | <3 | <3 | <3 | |
17 | Distance between charged bodies and relative ground | mm | >160 | >200 | >260 | >330 | |
18 | Main loop resistance | uΩ | ≤150 | ≤150 | ≤150 | ≤150 | |
24KV LBS with three-phase linkage, is mainly consist of frame, vacuum interrupter components, disconnector components and spring mechanism, disconnector and vacuum interrupter are fixed on frame via insulator, spring is fixed on frame.
rubber split bushing - molded cable outlet
36-40KV outdoor LBS AC high voltage disconnect vacuum load break switch
outdoor SF6 LBS sectionalizer insulated load break switch, ceramic bushing - molded cable outlet
Outdoor Pole-mounted SF6 gas insulated load break switch LBS ceramic bushing
It composed of disconnector, vacuum interrupter and operating mechanism and other parts.
FW9-24 Outdoor Off-Load overhead line disconnecting switch load break switch
for outdoor three-phase AC power distribution system with rated voltage of 12kV and rated frequency of 50HZ, as opening and closing load current and closing short-circuit current
FKW18-12 Outdoor load break switch is used in outdoor 12/24/40.5kV three phase AC 50/60Hz power system, it composed of disconnect blade, arc extinguishing chamber and operating mechanism.
12KV LBS Outdoor disconnector air load break switch with cutout fuse, with strong arcing ability, reliable performance, long service life
Outdoor SF6 LBS sectionalizer load break switch, rubber bushing -terminal outlet
12KV MV Outdoor Off-Load overhead line isolator disconnector LBS load break switch
ISAR-S load-break disconnector switches Air-break overhead disconnect switch Outdoor
Outdoor Switch-disconnector IACM LBS-12~36/400-50 Air-break overhead load-break switches
outdoor AC high voltage isolate switch (hereinafter referred to as load break switch)
FZW28-12 series outdoor AC high-voltage boundary vacuum load switch is suitable for outdoor three-phase AC power distribution systems with a rated voltage of 12KV and a rated frequency of 50Hz. It is used to open and close load currents and close short-circuit currents.
