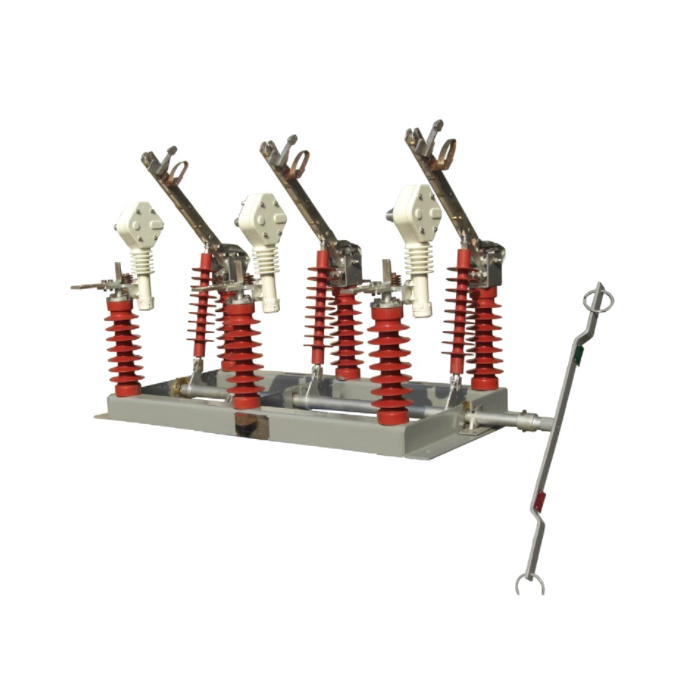

FKW18-12 Outdoor load break switch is used in outdoor 12/24/40.5kV three phase AC 50/60Hz power system, it composed of disconnect blade, arc extinguishing chamber and operating mechanism.
It adopts the principle of compressed gas production and arc extinguishing, which has the advantages of simple structure, low maintenance, strong arc extinguishing ability, high fracture insulation level, and high reliability, reaching the level of similar foreign products.
Category: Switchgear & Medium Voltage LBS
Brand: JGGY Electric
Model: FKW18-12
Power: 12KV/ 630A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
It adopts the principle of compressed gas production and arc extinguishing, which has the advantages of simple structure, low maintenance, strong arc extinguishing ability, high fracture insulation level, and high reliability, reaching the level of similar foreign products.

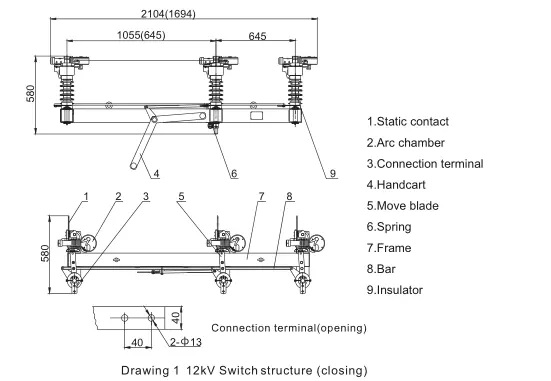

This switch is suitable for outdoor three-phase AC power distribution system with rated voltage below 12kV and rated frequency of 50Hz to meet the load current. In the open position, it can meet the isolation
requirements specified for the isolating switch.

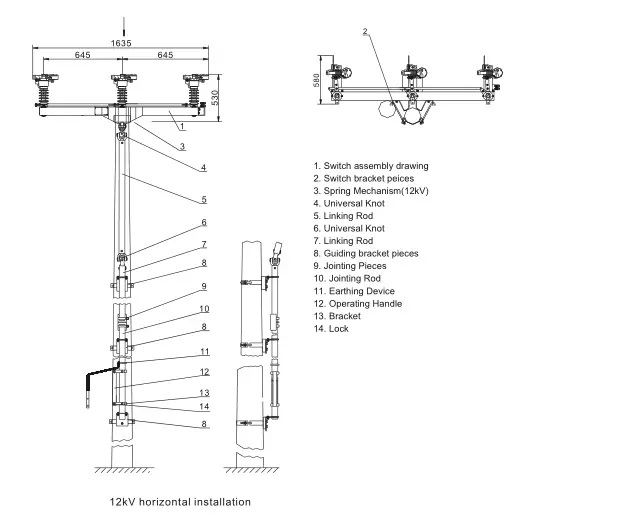

Environmental Conditions
a. Altitude ≤1000m;
b. Ambient air temperature -30~+40℃;
c. Relative humidity: daily average ≤95%, monthly average ≤90%;
d. Without frequent violent vibration.
Technical Parameters
| NO. | Name | Unit | Value | |
| 1 | Rated voltage | KV | 12 | |
| 2 | Rated frequency | Hz | 50 | |
| 3 | Rated current | A | 630 | |
| 4 | Rated active load breaking current | A | 630 | |
| 5 | Rated closed loop breaking current | A | 630 | |
| 6 | 5%rated active load breaking current | A | 31. 5 | |
| 7 | Rated cable charging breaking current | A | 10 | |
| 8 | Rated breaking capacity of no-load transformer | KVA | 1600 | |
| 9 | Rated breaking capacitor bank current | A | 100 | |
| 10 | 1min power frequency withstand voltage: vacuum fracture/phase-to-phase, phase-to earth, disconnectingfracture | KV | 42/48 | |
| 11 | Lightning impulse withstand voltage: phase-to phase,phase-to-earth/disconnecting fracture | KV | 75/85 | |
| 12 | Rated short time withstand current(thermal stability) | KA | 20 | |
| 13 | Rated short-circuit duration | S | 4 | |
| 14 | Rated peak withstand current(dynamic stability) | KA | 50 | |
| 15 | Rated short-circuit closing current | KA | 50 | |
| 16 | Mechanical life | Times | 10000 | |
| 17 | Vacuum interrupter contact erosion limit | mm | 0.5 | |
| 18 | Manual operating torque | Nm | ≤200 | |
|
19 |
Load break switch vacuum interrupter assembling adjustment | Clearance between opencontacts | mm | 5±1 |
| Average opening speed | m/s | 1.1±0.2 | ||
| Three-phase openingasynchronism | ms | <5 | ||
| Three-phase closingasynchronism | ms | <2 | ||
| Distance between chargedbodies and phase-to-earth | mm | >200 | ||
| Auxiliary circuit resistance | μΩ | ≥400 | ||

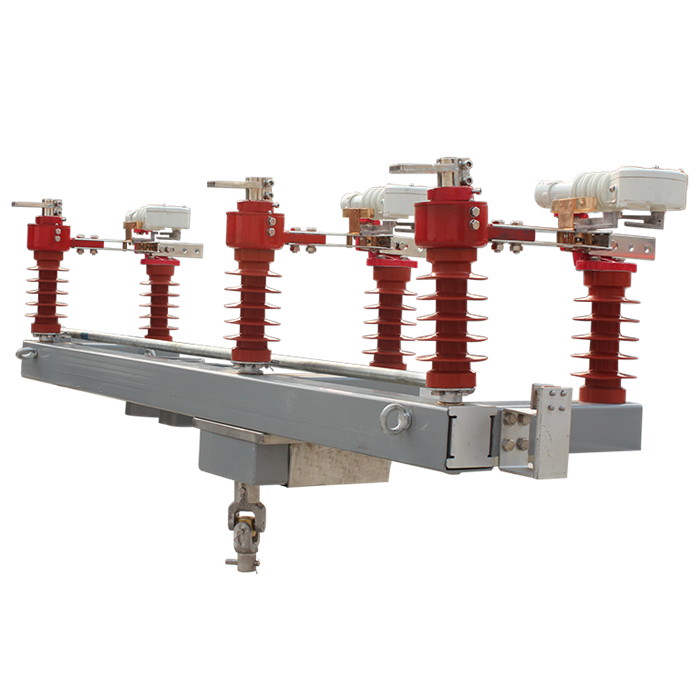

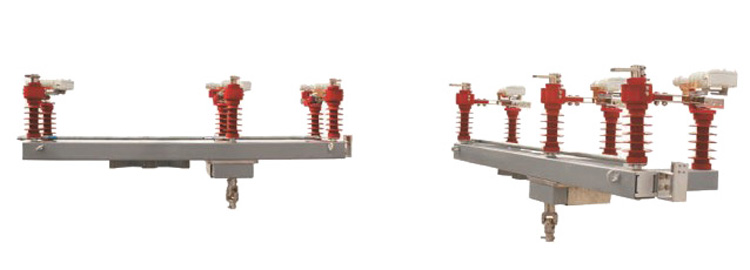

24KV LBS with three-phase linkage, is mainly consist of frame, vacuum interrupter components, disconnector components and spring mechanism, disconnector and vacuum interrupter are fixed on frame via insulator, spring is fixed on frame.
rubber split bushing - molded cable outlet
36-40KV outdoor LBS AC high voltage disconnect vacuum load break switch
outdoor SF6 LBS sectionalizer insulated load break switch, ceramic bushing - molded cable outlet
Outdoor Pole-mounted SF6 gas insulated load break switch LBS ceramic bushing

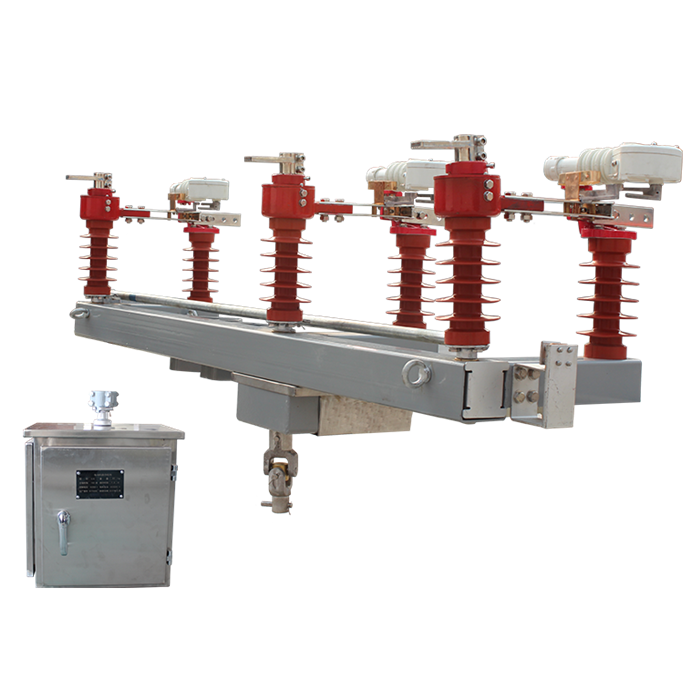

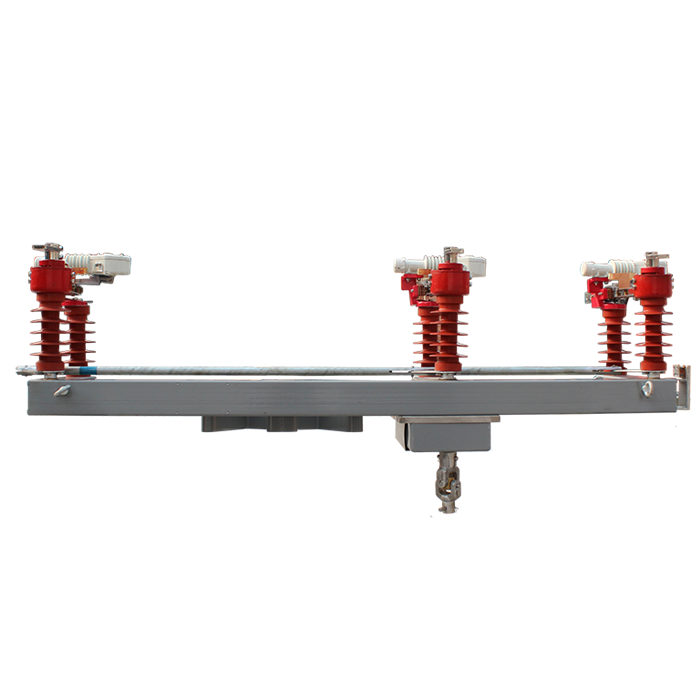

It composed of disconnector, vacuum interrupter and operating mechanism and other parts.
FW9-24 Outdoor Off-Load overhead line disconnecting switch load break switch
for outdoor three-phase AC power distribution system with rated voltage of 12kV and rated frequency of 50HZ, as opening and closing load current and closing short-circuit current
FKW18-12 Outdoor load break switch is used in outdoor 12/24/40.5kV three phase AC 50/60Hz power system, it composed of disconnect blade, arc extinguishing chamber and operating mechanism.
12KV LBS Outdoor disconnector air load break switch with cutout fuse, with strong arcing ability, reliable performance, long service life
Outdoor SF6 LBS sectionalizer load break switch, rubber bushing -terminal outlet
12KV MV Outdoor Off-Load overhead line isolator disconnector LBS load break switch
