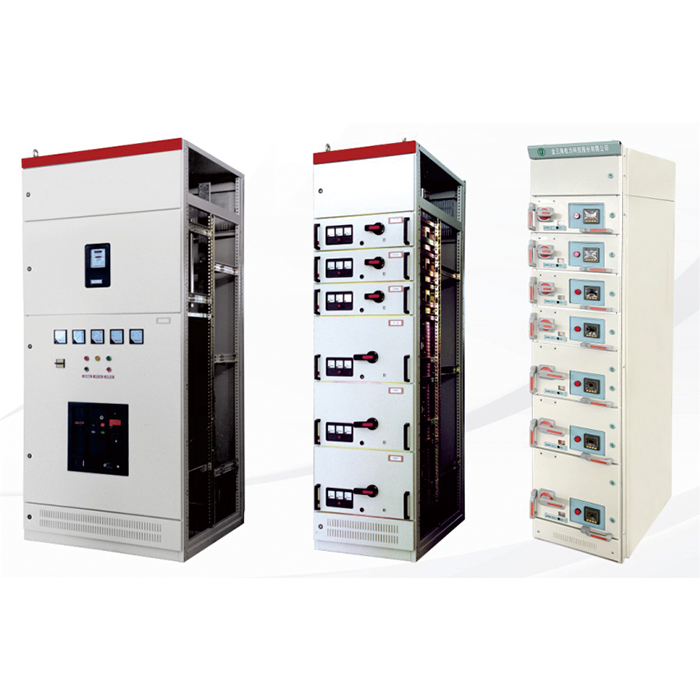

GCK, GCL Low-voltage withdrawable switchgear
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: GCK, GCL Low-voltage withdrawable switchgear
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
product description
GCK low-voltage withdrawable switchgear (hereinafter referred to as switchgear) is a new product developed by our company to absorb and absorb international advanced technology.
This product is suitable for rated working voltage 380V, AC three-phase four-wire, three-phase five-wire system, as power system, substation, industrial and mining enterprises and high-rise buildings, receiving, feeding, reactive power compensation, energy metering, Lighting and motor centralized control.
This product meets the standards: GB7251.1 《Low-voltage switchgear and control equipment》, JB/T9661 《Low-voltage withdrawable switchgear》, IEC60439-1 《Low-voltage switchgear and control equipment》.

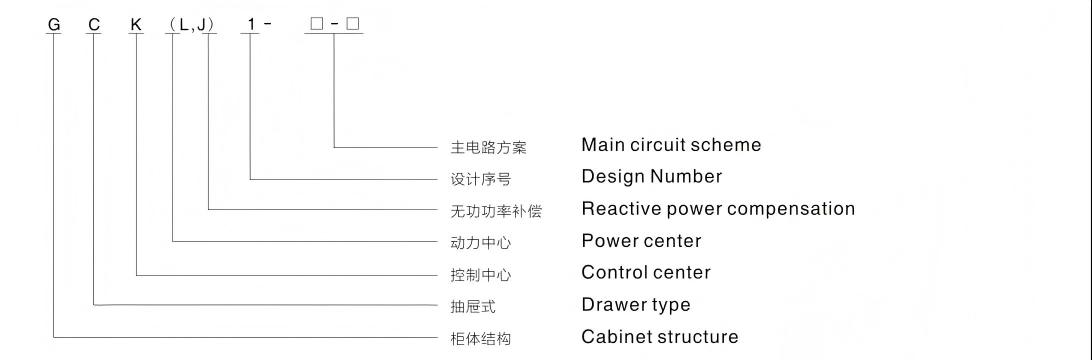

Model meaning
Environmental conditions of use
Altitude: no more than 2000m.
Ambient temperature: -5℃ ~ +40℃; The daily average temperature should not be higher than +35℃;
Relative humidity: the maximum temperature is not more than 50% at +40℃, and the relative humidity is allowed at lower temperature. For example, 90% at +20℃;
There are no places for disasters, explosions, serious pollution, chemical corrosion and severe vibrations;
Tilt not more than 5 degrees from the vertical plane;
Suitable for transportation and storage at the following temperatures, -25℃ ~ +55℃, in a short time (not more than 24h) does not exceed +70℃;
If the above conditions of use cannot be met, the user shall submit it to the company at the time of ordering and resolve it by negotiation.
Technical Parameters
Rated insulation voltage: 660V, 1000V;
Auxiliary circuit rated voltage: AC220V, 380V, DCIIOV, 220V;
Rated frequency: 50Hz-(60Hz);
Rated current: horizontal busbar ≤ 3150A; vertical busbar 630A, 800A, 1200A
Rated peak current: 105KA/0.1s, 176KA/0.1s;
Rated short-time withstand current: 50, 80KA / ls neutral busbar 30KA / ls;
Functional unit (drawer) breaking capacity: 50KA (effective value).
Shell protection grade: IP30, IP40;
Busbar setting: three-phase four-wire system, three-phase five-wire system;
Mode of operation: local, remote, automatic.
Rated working voltage: 380V, 660V.

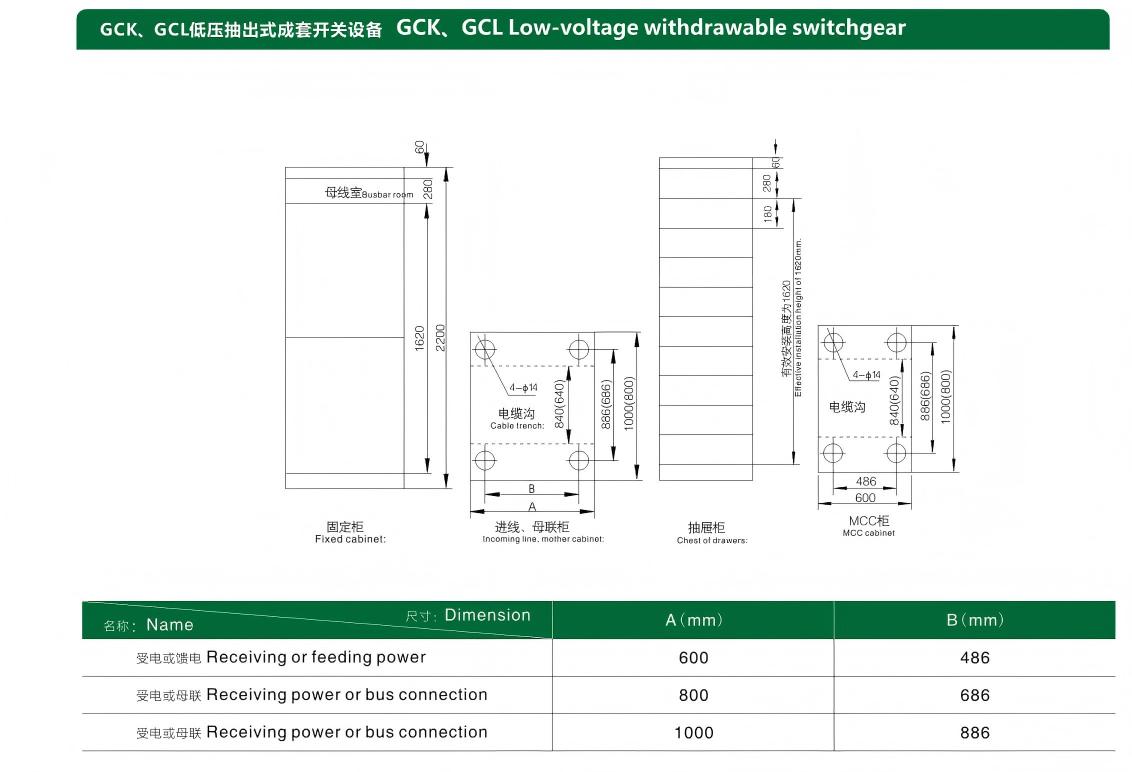

Shape and installation dimensions (see photo)
Effective installation height of 1800mm.
Power receiving cabinet and busbar connection cabinetThe cabinet width is divided into 600, 800, 1000, 1200, (800-400) mm according to the switch current level and the incoming and outgoing line mode; the cabinet depth is 800, 1000 (1000mm is recommended; the upper line outlet cabinet must be 1000mm)
Feeder cabinetCabinet width: 600, 800mm; cabinet depth: 800, 1000mm (1000mm recommended; 1000mm for upper outlet cabinet)
Motor Control Cabinet (MCC)Cabinet width: 600, 600+200mm; cabinet depth: 800, 1000mm (1000mm recommended; 1000mm for upper outlet cabinet)Power factor compensation cabinetCabinet width: 600 (4, 6 slots), 800 (8), 1000 (10) mm; cabinet depth: 800, 1000mm.
Ordering instructions
main circuit scheme single line system diagram;
schematic diagram or principle wiring diagram;
The detailed specifications and quantity of electrical equipment installed in each cabinet;
Arrangement and combination diagram of the switchgear, floor plan;
In and out line mode;
The surface color of the switchgear.
