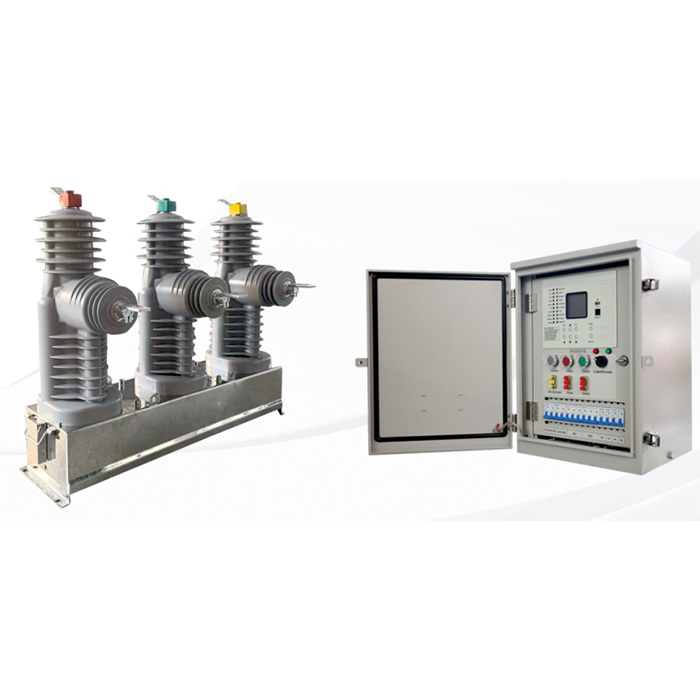

3 phase recloser distribution automation
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: 3 phase recloser distribution automation
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Provide customized manufacturing
A comprehensive solution for design, assembly, and testing Rated voltage: 6kV...38kV, rated current: 630A...1250A.
Overview of reclosing
Implementation of collaborative support function for components:
The JSJW series vacuum recloser consists of integrated terminals, current transformers, permanent magnet actuators, and recloser controllers.Integrated terminals can facilitate electrical connections between various parts and with external circuits, ensuring smooth signal transmission and power distribution; Current transformers can accurately measure the current in the circuit, providing key current parameter basis for protection judgment and reclosing action; The permanent magnet actuator is responsible for performing closing, opening and other operation actions, and accurately drives the circuit breaker and other equipment to change the corresponding state according to the instructions of the recloser controller.The recloser controller is like a "brain", judging when to make the reclosing action based on the set logic and various electrical information collected.These components work together to ensure the normal functioning of the reclosing function.For example, if a fault trip occurs, it can control the circuit breaker to close again according to the established strategy and attempt to restore power supply.
Fuel tank for recloser
Protection and connection functions:
Protection function: The vacuum recloser tank is made of 304 # grade stainless steel and coated with a light gray powder coating, which has good corrosion resistance and mechanical strength.It can protect the key components of the recloser inside from the harsh external environment under various environmental conditions, ensuring long-term stable and reliable operation of the recloser.It has reached IP65 protection level, which means it can completely prevent dust from entering and protect against low-pressure water spray from all directions.It can work normally without being damaged in outdoor environments, with certain dust or occasional rainfall, ensuring the stable performance of internal electrical components.
