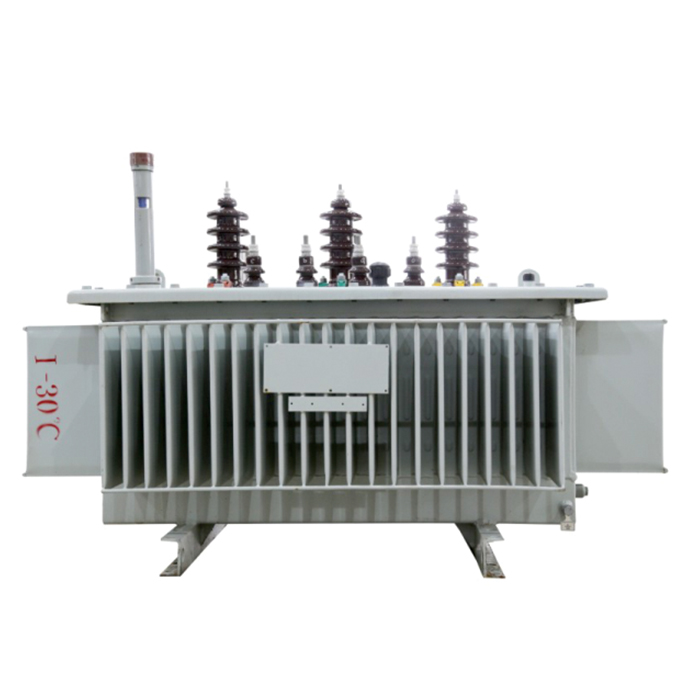

Amorphouse Alloy Transformer
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: Amorphouse Alloy Transformer
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

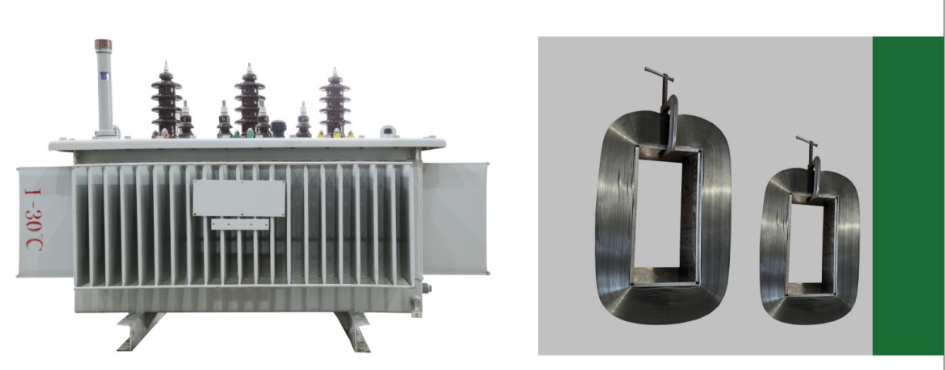

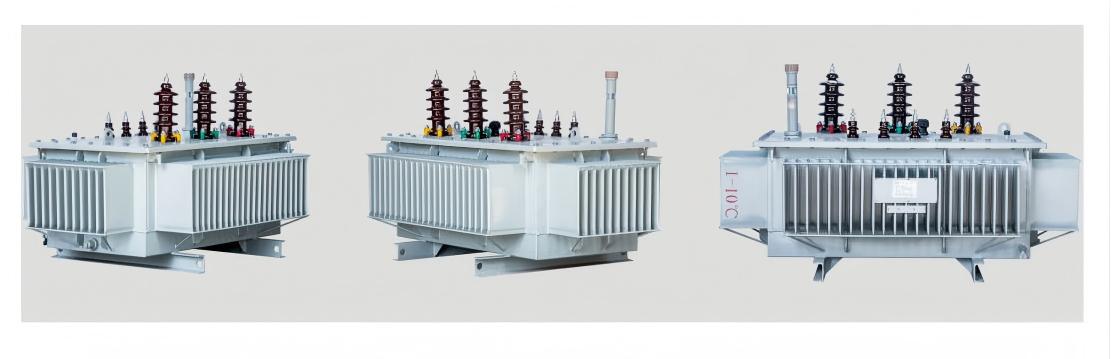

Amorphous Alloy Transformer is a type of power transformer with low loss and high energy efficiency. This type of transformer uses iron-based amorphous metal as its core. Due to the absence of long-range ordered structure in this material, its magnetization and demagnetization are easier than those of common magnetic materials.
Therefore, the iron loss (i.e., no-load loss) of amorphous metal transformers is 70-80% lower than that of traditional transformers using silicon steel as their cores. With the reduction in loss, the demand for power generation also decreases, and the emission of greenhouse gases such as carbon dioxide is accordingly reduced. Based on the factors of energy supply and environmental protection, amorphous metal transformers have been widely adopted in large developing countries such as China, India, Thailand, Indonesia etc.
Technical Features
Low No-load Loss: Amorphous alloys have low hysteresis and eddy current losses, significantly reducing no-load loss.
High Efficiency: Due to the excellent magnetic properties of the amorphous alloy, the transformer operates with higher efficiency under rated load.
Low Noise: The noise level of the amorphous alloy transformer is lower than that of traditional silicon steel transformers, making it suitable for use in noise-sensitive environments.
Environmentally Friendly: The production of amorphous alloy materials consumes less energy, meeting environmental requirements.
Energy Saving: The no-load loss of amorphous alloy transformers is significantly reduced, achieving energy-saving effects.
