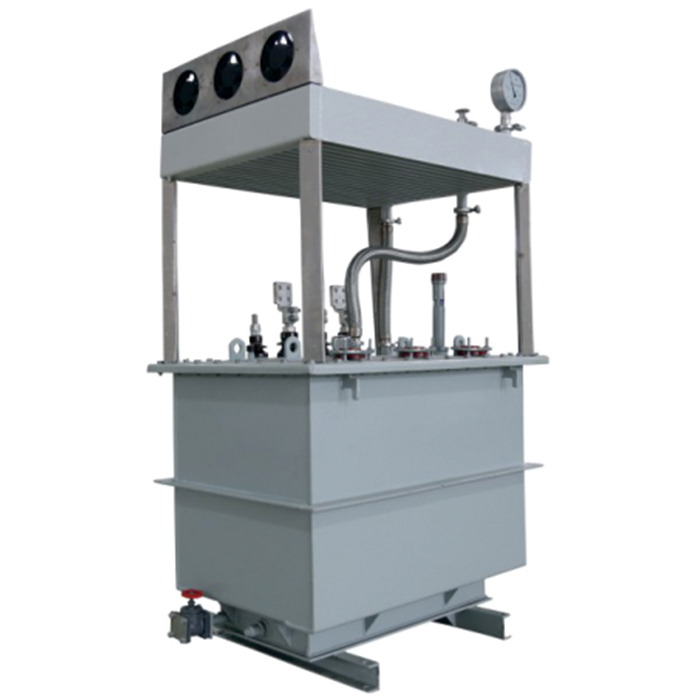

Evaporative Cooling Transformer
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: Evaporative Cooling Transformer
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Product Overview
The Evaporative Cooling Transformer is a product co-developed by our company and the Chinese Academy of Sciences under the "Industry-Academia-Research" collaboration. It uses a new type of liquid insulation material with unique and excellent properties as the insulation and cooling medium. The transformer is non-flammable, explosion-proof, non-toxic, harmless, oil-free, environmentally friendly, and energy-efficient. It offers high dielectric strength, excellent insulation, and efficient cooling performance.
Key Features of the New High-Performance Evaporative Cooling Transformer:
Superior Fire and Disaster Resistance: The new liquid insulation material is non-flammable, explosion-proof, and fire-extinguishing, eliminating hidden fire hazards.
Energy Efficiency: With a strong temperature performance, it reduces transformer load loss without increasing copper wire consumption.
Low Overload Capacity: The evaporative cooling technology effectively addresses equipment risks due to temperature rise, ensuring safe operation during peak load periods.
Environmentally Friendly: The insulation material is non-toxic, has no environmental impact, produces low noise, and is recyclable after decommissioning.
Space-Saving: Using evaporative cooling transformers can reduce station area by more than 30%.
Maintenance-Free: The new liquid insulation material has stable performance, requiring no monitoring or replacement throughout its lifespan.
Applications:
The product is mainly used in areas with high population density, such as residential complexes, data centers, stations, airports, military projects, and critical infrastructure, as well as in the power distribution fields of wind and marine energy, photovoltaic, and energy storage in the renewable energy sector.
