Medium Voltage Load Break Interrupter Switch for Soft Starter Panels
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: Medium Voltage Load Break Interrupter Switch for Soft Starter Panels
Power: 4.76KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Medium Voltage Load Break Interrupter Switch for Soft Starter Panels | 5kV–38kV, 600A/1200A
Indoor medium voltage load break interrupter switch for soft starter panels, MCCs and transformer feeders. Available in 5kV–38kV, 600A/1200A, manual or motorized, with fuse and grounding options. Ideal for MV motor starter OEM and retrofit projects.

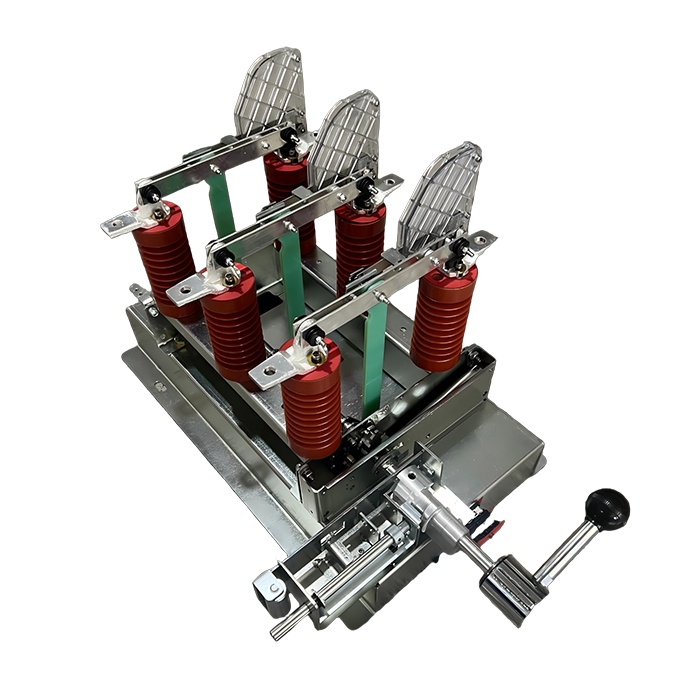

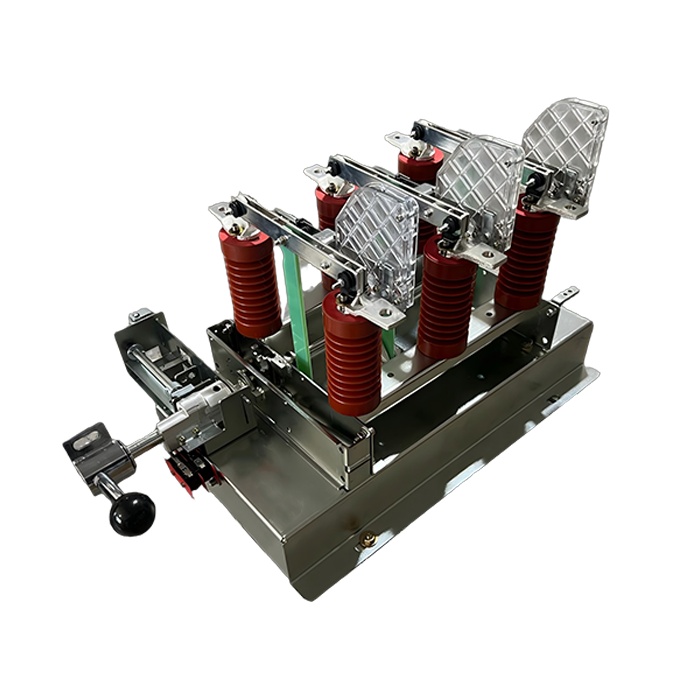

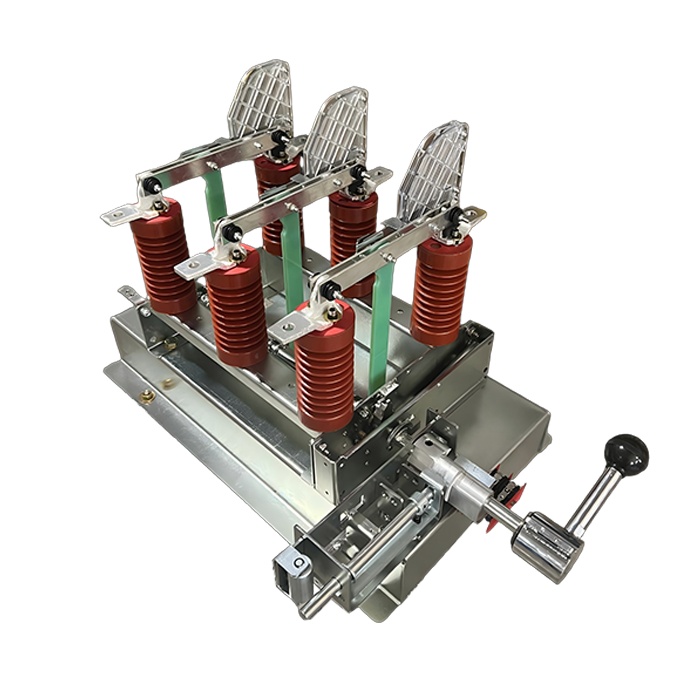

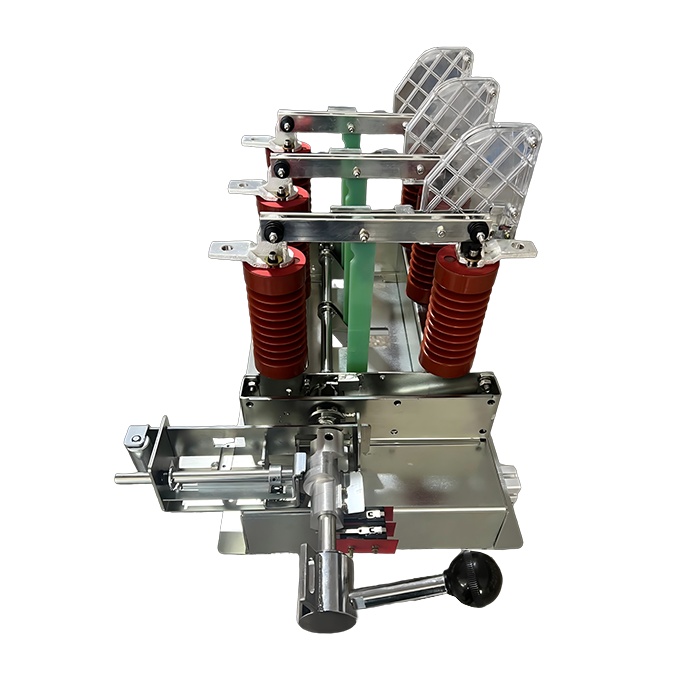

Our medium voltage load break interrupter switch is designed for indoor metal-enclosed medium voltage equipment, especially for medium voltage soft starter panels, motor control centers (MCC), transformer feeder cubicles, and combination motor starters.
Available in 5kV to 38kV classes, with 600A and 1200A options, this 3-pole group-operated air-insulated load break switch features a stored energy quick-make / quick-break mechanism, making it ideal for demanding industrial motor control applications.
It is widely suitable for projects requiring a medium voltage soft starter disconnect switch, a fusible load break switch, or a replacement for legacy North American PIF-style load break interrupter switches commonly seen in Benshaw, TEAMmaster, MVC4, and other UL / NEMA style MV starter lineups.
• Designed for MV soft starters, MCCs, and motor control lineups
• 5kV / 7.2kV / 15kV / 27kV / 38kV voltage classes
• 600A / 1200A continuous current ratings
• Manual (MO) or Electrical Operation (EO) available
• Supports switch-fuse and fuse-switch configurations
• Optional grounding bar / earthing function / interlocks
• Ideal for OEM integration, retrofit, and replacement projects
In medium voltage motor control systems, the load break interrupter switch remains a critical safety and isolation component. Even in advanced solid-state soft starter systems, the upstream switching section still requires a reliable load break / fault make disconnect switch for maintenance isolation, fuse coordination, and visible safety verification.
Our frame-mounted indoor medium voltage load break interrupter switch is engineered for this exact application.
It is a 3-pole, single-throw, group-operated switch with a stored-energy spring mechanism that delivers quick-make / quick-break performance independent of handle speed, helping ensure safe operation and reliable load interruption in industrial environments.
Product Type: Indoor Air-Insulated Load Break Interrupter Switch
Application: MV Soft Starter / MCC / Motor Control / Transformer Feeder
Switch Type: 3-pole, group-operated, single-throw
Voltage Class: 5kV / 7.2kV / 15kV / 27kV / 38kV
Nominal System Voltage: 2.4kV to 34.5kV
Maximum Design Voltage: Up to 38kV
Rated Current: 600A / 1200A
Rated Frequency: 50Hz / 60Hz
Operation Type: Manual (MO) / Electrical Operation (EO)
Operation Mechanism: Stored-energy, quick-make / quick-break
Mounting Type: Frame-mounted for metal-enclosed equipment
Handle Arrangement: Front operation / Side operation
Fuse Arrangement: With fuses / Without fuses
Grounding Option: Grounding bar / earthing arrangement / optional interlock
Auxiliary Contacts: Optional
• Medium voltage soft starter panels
• Medium voltage solid-state starters
• MV motor control centers (MCC)
• Combination motor starters
• Transformer feeder sections
• Pump control systems
• Compressor starter panels
• Blower and fan motor starters
• Mining and cement plant motor control
• Water & wastewater treatment systems
• Oil & gas process motor starter lineups
Q1: Can this switch be used in medium voltage soft starter panels?
A: Yes. This switch is specifically suitable for medium voltage soft starter applications where customers need a load break / fault make disconnect switch upstream of fuses, isolation contactors, bypass contactors, and SCR power stacks.
Q2: What current ratings are available?
A: Standard options are typically 600A and 1200A.
Q3: Is manual or motorized operation available?
A: Yes. Both Manual Operation (MO) and Electrical Operation (EO) are available.
