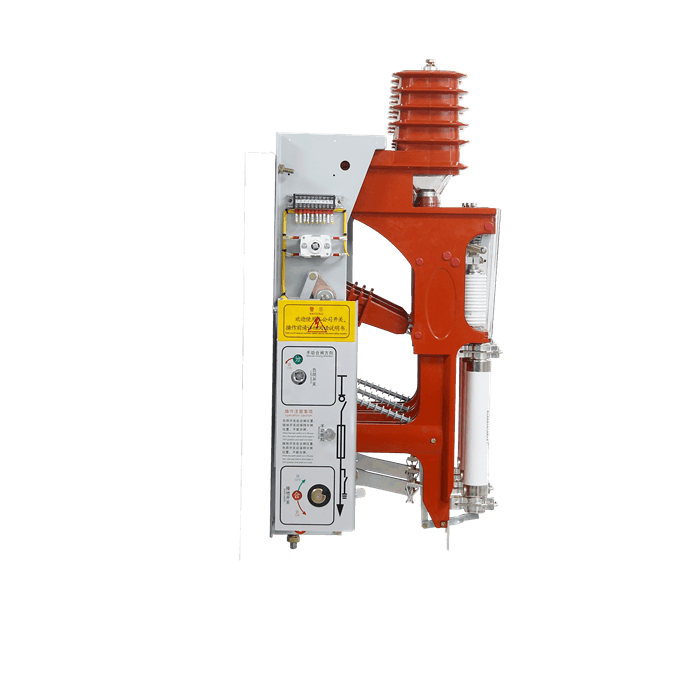

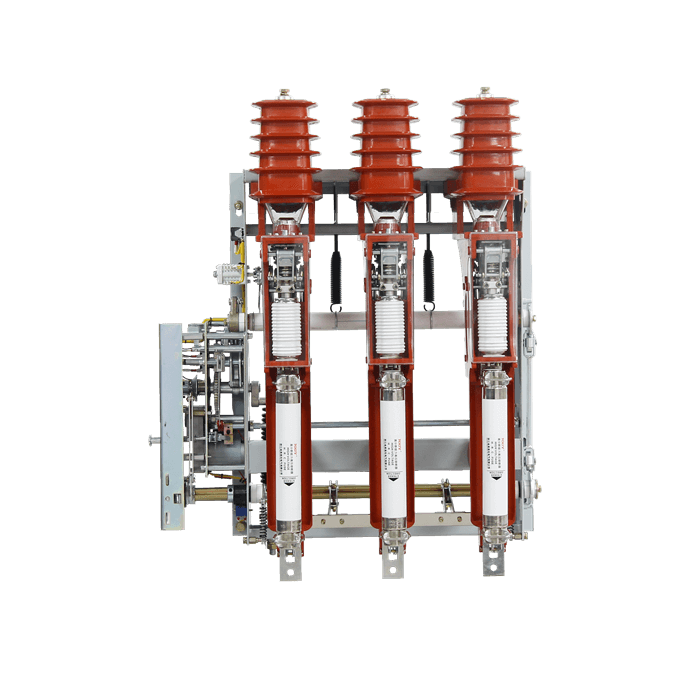

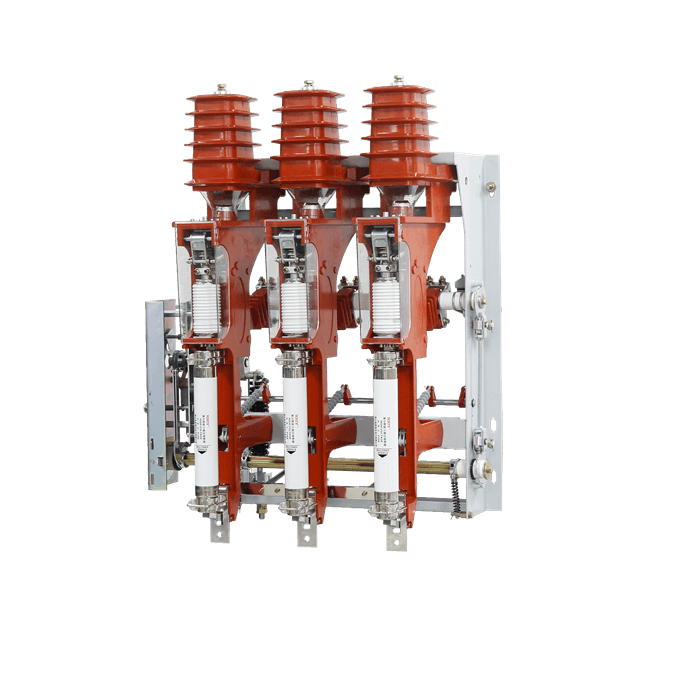

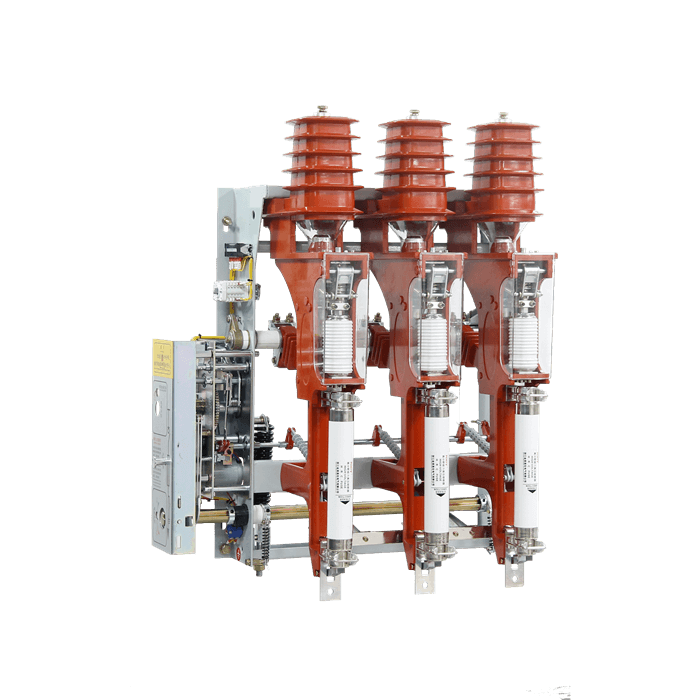

FZN25/FZRN25 type 12KV HV MV vacuum load break switch and composite apparatus

FZN25/FZRN25 type vacuum load switch and composite apparatus, suitable for three-phase AC 50Hz ring network or terminal power supply and industrial electrical equipment

Category: Switchgear & High Voltage Products

Brand: JGGY Electric

Model: FZN25/FZRN25

Power: 12KV/ 630A

FOB Port: Ningbo/Shanghai

Terms of Pyament: Western Union,T/T,Paypal

GET A QUOTE

Product Details
Additional Information

Inquiry

Product Description

FZN25/FZRN25 type vacuum load switch and composite apparatus, suitable for three-phase AC 50Hz ring network or terminal power supply and industrial electrical equipment. for load control and short circuit protection use, load switch open and close the closed-loop current, no-load transformer and cable charging current, composite apparatus can break any current till rated short circuit current. Adopt the straight move or isolating fracture and vacuum interrupter linkage. With the function of manual and electric operation. FZRN25 special transmission structure design, arc extinguish chamber only withstand voltage in the moment of closing and breaking, small size, low price. FZN25, FZRN25 can realize isolation fracture and arc extinguish chamber fracture disposable operating FZN25, FZRN25 has a grounding switch mutual linkage grounding valve between the static contact and movable conductive cylinder, ensures safety and convenient maintenance.

◆It is suitable for three-phase AC 50 / 60Hz interruption power supply and industrial electrical equipment

◆For load control and short circuit protection

◆Load switch breaking load, closed-loop current, no-load transformer and cable charging current

◆The current of the combined apparatus is up to the rated short-circuit current

◆It adopts direct acting isolation fracture and vacuum arc linkage, with manual and electric functions Feature:

◆Unique transmission structure design, small volume and light weight,

◆The interrupter only bears high voltage at the moment of making and breaking.

◆It can realize the one-time operation of isolating fracture and interrupter end fracture

◆There is a grounding valve linked with the grounding switch between the static contact and the moving contact conducting cylinder

◆It is safe and convenient to inspect

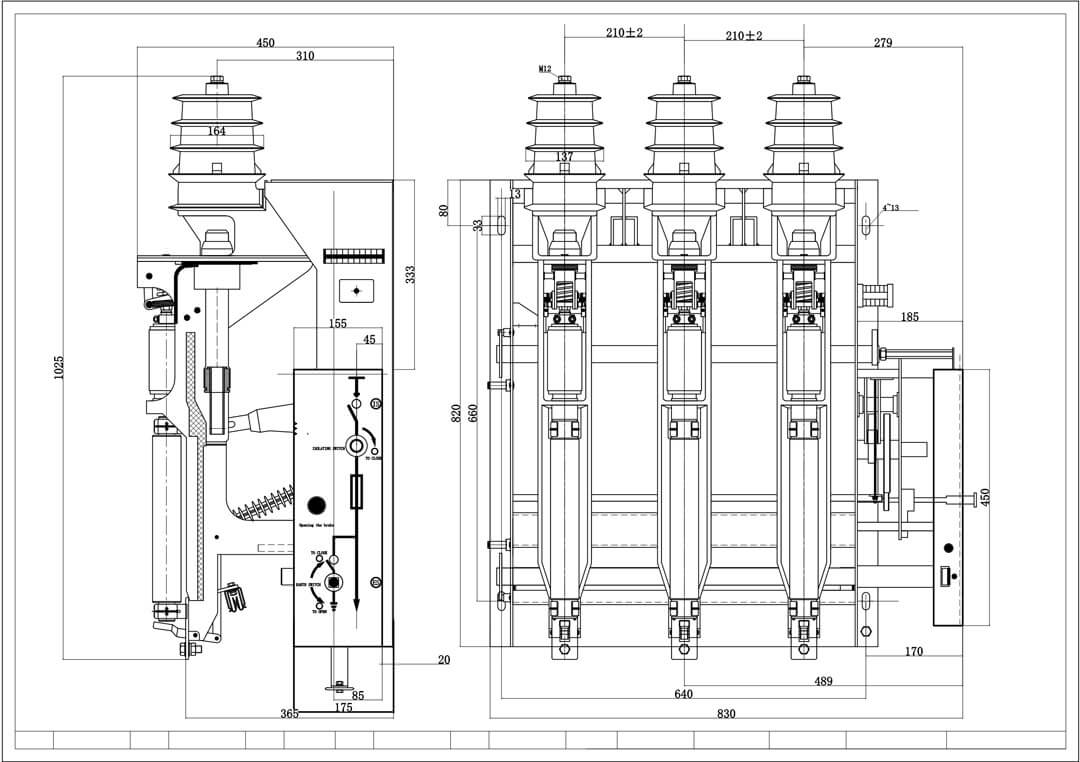

No.	project		units	parameter

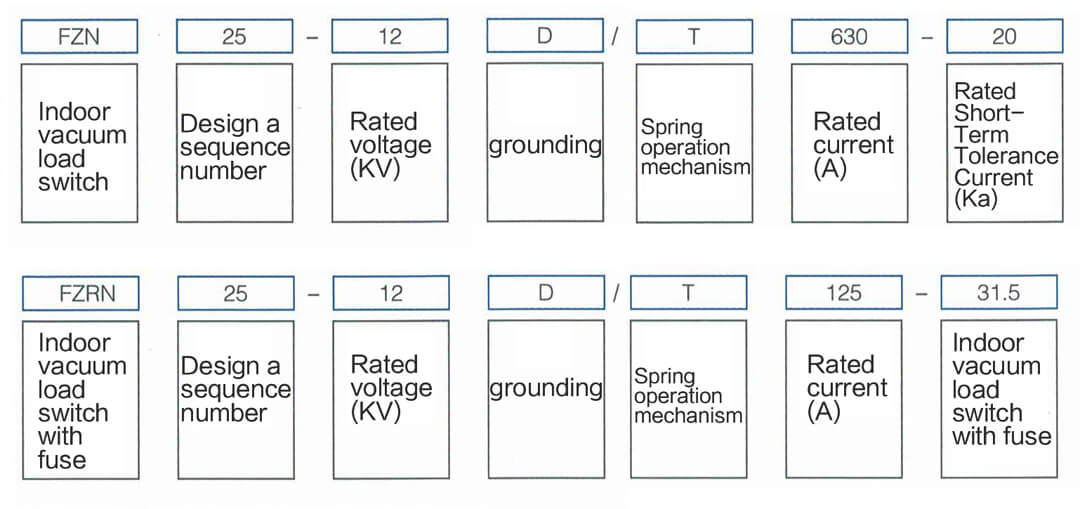

				FZN25-12D/T630-20	FZRN25-12D/T125-31.5
1	The rated voltage		kV	12
2	Rated frequency		HZ	50
3	Rated current		A	630	125
4	Rated insulation level	Voltage withstand 1min power frequency	kV	Arc extinguishing chamber fracture 30; To the ground, interphase 42; Isolation fracture 48
		Lightning shock withstand voltage	kV	To the ground, phase 75; Isolation fracture 85
5	Rated dynamic stability current (peak)		kA	50	-
6	4S heat stabilized current		kA	20	-
7	Rated active load breaking current		A	630	125
8	Rated closed-loop breaking current		A	630	125
9	Rated cable charging break current		A	10	10
10	Turn off the no-load transformer capacity		KVA	1250	1250
11	Rated short circuit breaking current		kA	-	31.5
12	Rated transfer current, rated transfer current		A	-	2000
13	Fuse type			-	SDLAJ-12 SFLAJ-12
14	Impactor outputs energy		J	-	2-5(medium)
15	Rated short circuit closing current		kA	50
16	Ground switch rated dynamic stable current		kA	50
17	2S thermal stability current of the ground switch		kA	20
18	Rated voltage of the auxiliary circuit		V	AC/CD:220/110
19	Mechanical life		time	10000
