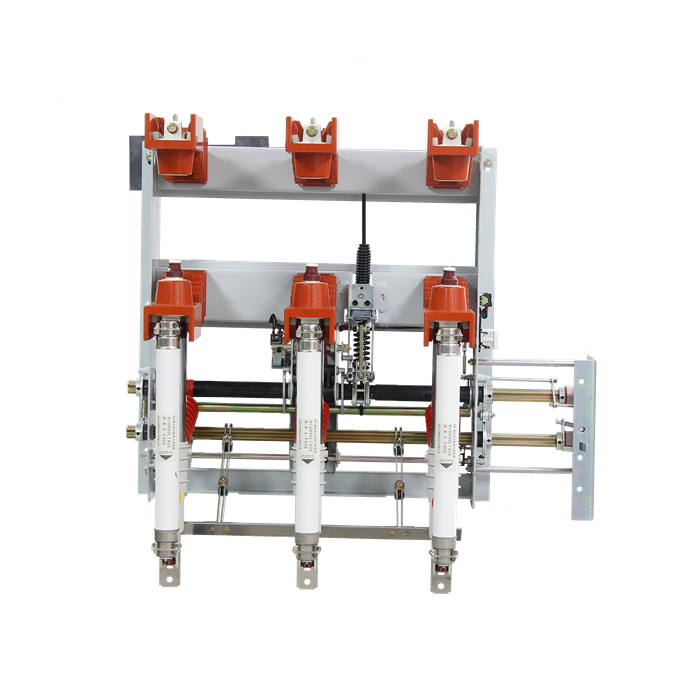

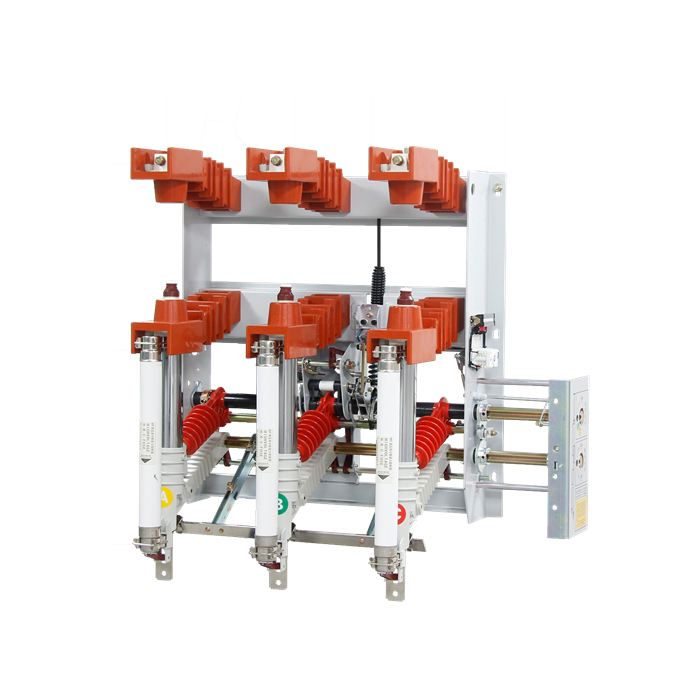

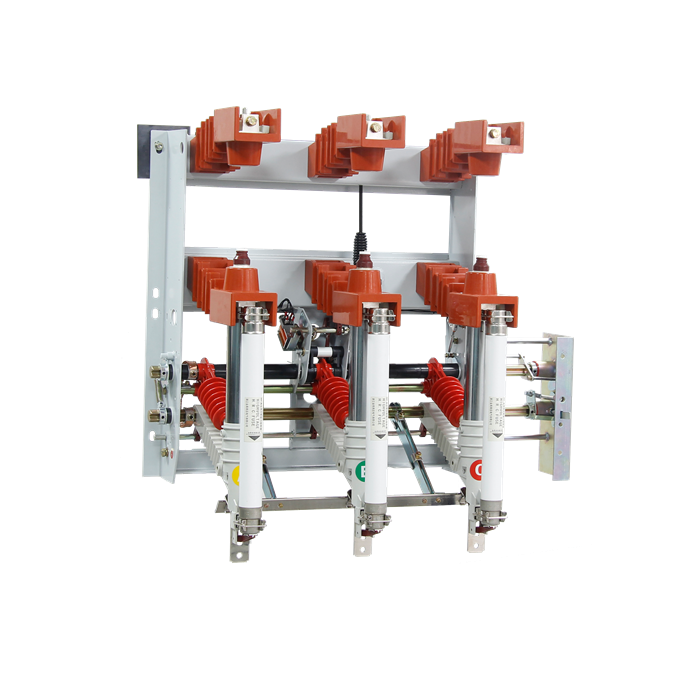

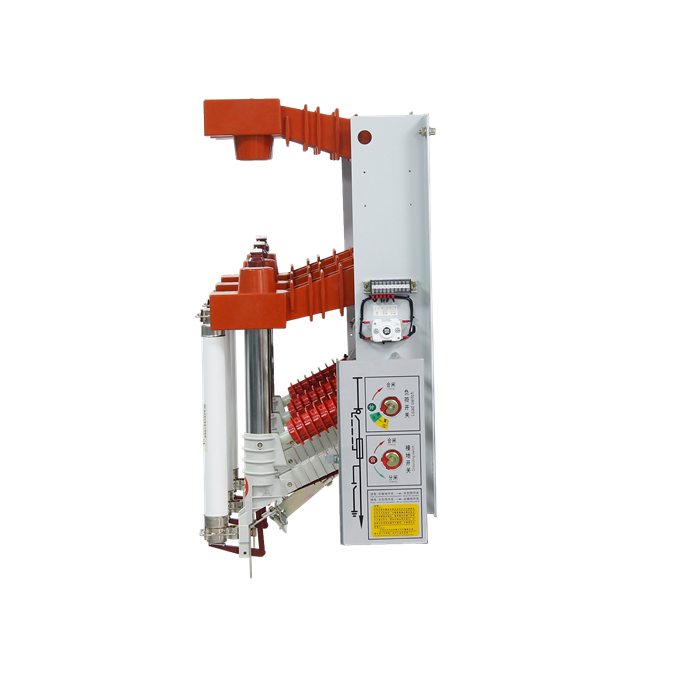

FKN12 24KV Compressed Air load break switch and FKRN12 combination with Fuse. They are applicable in 3 phases power distribution system of 24KV, serving to control and protect power equipment such as transformer, cable and overhead line. In particular, they are suitable for terminal transformer substation and box-type substation in grid.
Category: Switchgear & Medium Voltage LBS
Brand: JGGY Electric
Model: FKN12 FKRN12
Power: 24KV/ 630A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Indoor HV air load break switch is a 3-phase AC 50Hz 24kV indoor switch equipment.
♦ Installation way: front-mounted, side mounted, flip mounted;
♦ Operating mechanism: spring operating mechanism, manual type and electrical type available (motor);
♦ Operation type: right operation and left operation;
♦ Application: indoor 24kv switchgear.
The Normal Use of The Environment:
The normal conditions of use load switch and switchgear is suitable for the following, if the actual use of the environment condition is different from the normal conditions of use, shall be borne by the user and manufacture of both parties through consultation.
The ambient temperature: 40 ℃, lower limit:: -25 ℃;
Altitude: not more than 1000M;
Relative humidity: daily average value is greater than 95%, on average less than 90%;
Saturated vapor pressure: daily average value not more than 2.2×10-3Mpa, monthly average value not more than 1.8×10-3Mpa;
Installation location: no fire, explosion, pollution, chemical corrosion and frequent violent vibration of the place;
Earthquake intensity: no more than 8;

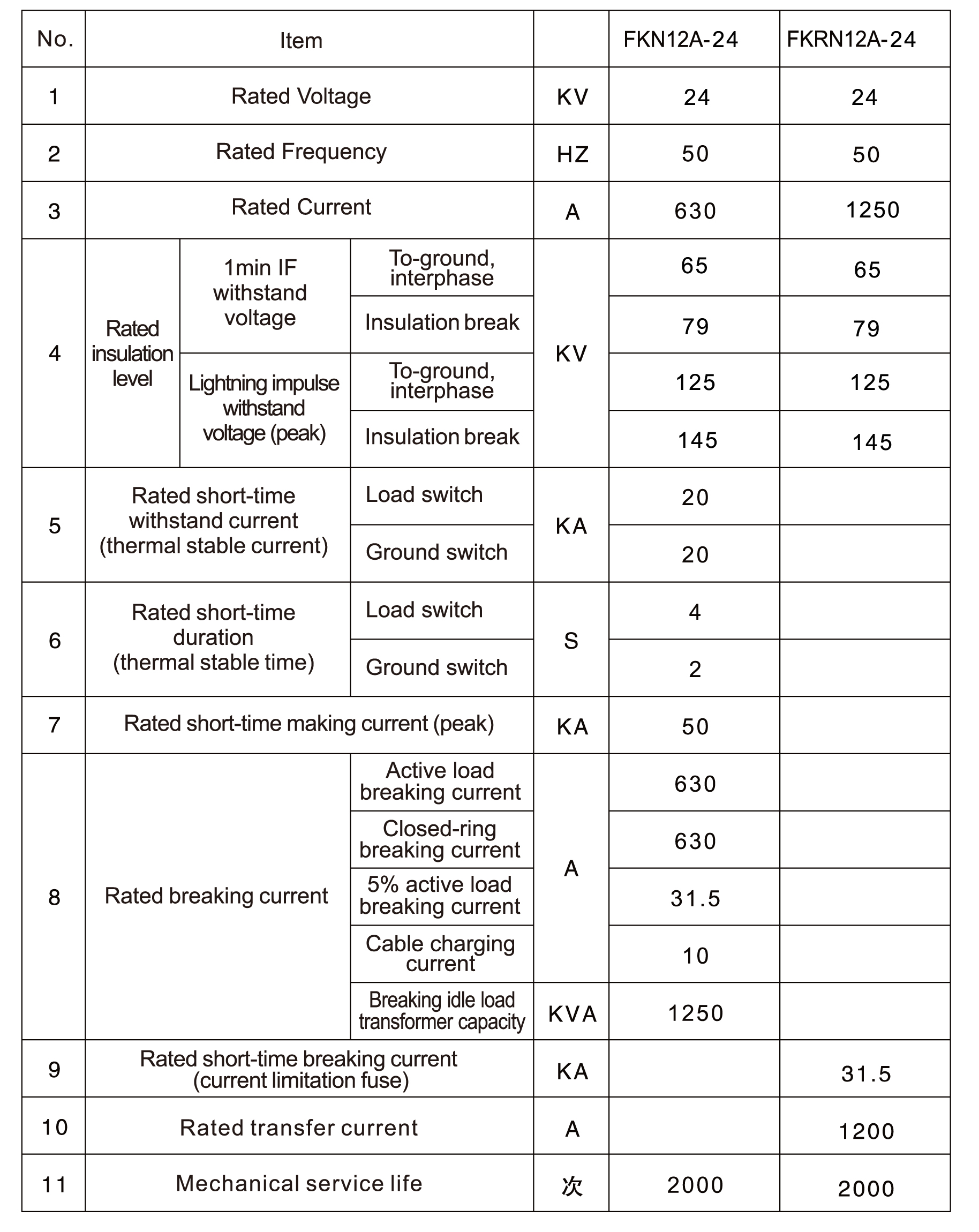

Main Technical Parameters
