JGV12/1250A ABB type circuit breaker gas insulated switchgear 12kv/1250A SF6 Free
The isolating switch can be operated electrically according to user needs, which can truly realize the automation of distribution network;
Category: Switchgear & High Voltage Products
Brand: JGGY Electric
Model: JGV12/1250A
Power:12KV/1250A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

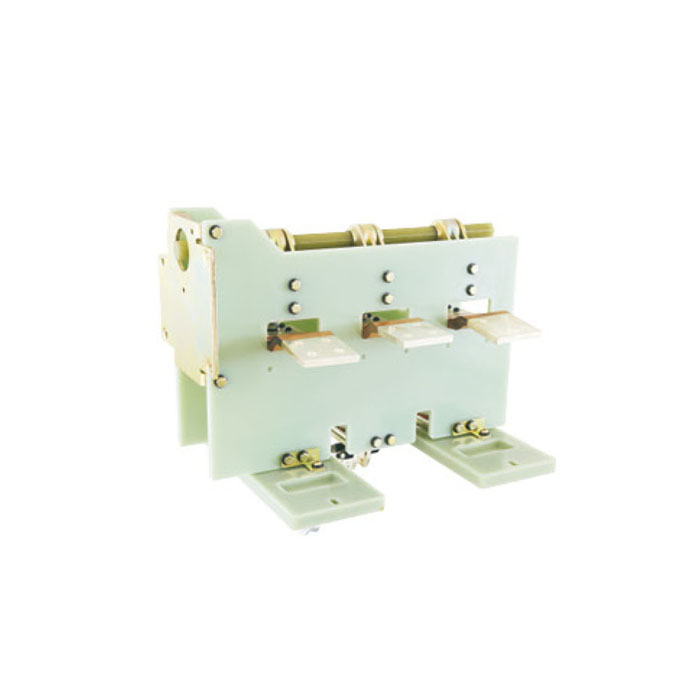

JGV12/1250A Vacuum circuit breaker is a special vacuum circuit breaker for 12kV SF6 inflation cabinet. The switchadopts splint type structure, which has the advantages of reliable breaking performance, long service life, maintenance-free and easy installation.
JGV12/1250A vacuum circuit breaker is mainly used in the market common ABB type SF6 fully insulated metalclosed switchgear or for other similar types of SF6 inflation cabinet, as the main components of the infation cabinet, bealthe main function, with the rated current and load current, Closing and breaking short circuit current perfommance
| No. | Item | Unit | Technical Parameters |
| 1 | Rated Frequency | Hz | 50 |
| 2 | Rated Current | A | 630 |
| 3 | Rated Short-Time Withstand Current | kA | 20/25 |
| 4 | Rated Peak Withstand Current | kA | 50/63 |
| 5 | Rated Short-Circuit Duration | s | 4 |
| 6 | Rated Short-Circuit Making Current | kA | 50 |
| 7 | Theoretical Operating Cycles | Times | 5000 |
