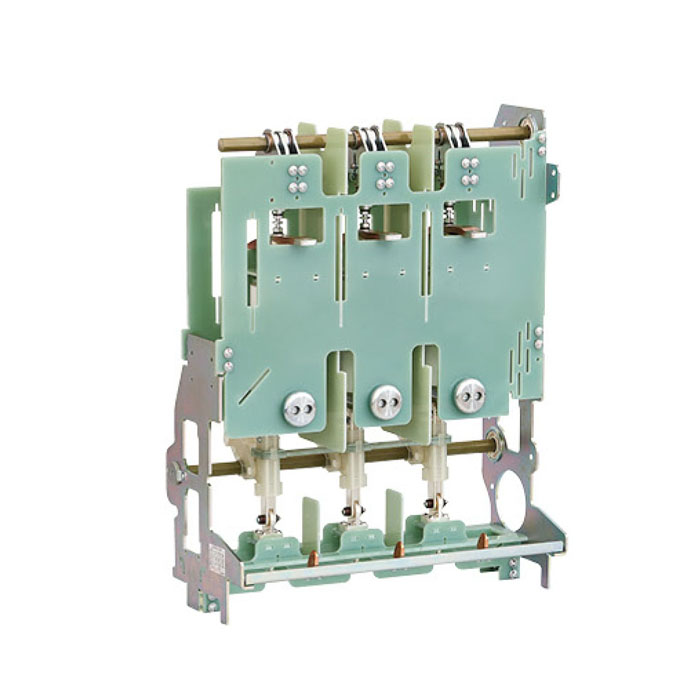

JG36XV/630/3 SF6 Lower lsolation Circuit Breaker Switch for switchgear
The isolating switch can be operated electrically according to user needs, which can truly realize the automation of distribution network;
Category: Switchgear & High Voltage Products
Brand: JGGY Electric
Model: JG36XV/630/3
Power:36KV/630A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
| No. | Item | Technical Parameters |
| 1 | Rated Voltage (kV) | 40.5kV |
| 2 | Rated Current (A) | 630A |
| 3 | Rated Frequency (Hz) | 50Hz |
| 4 | Power Frequency Withstand Voltage (Phase-to-Phase / Phase-to-Ground) | 95kV |
| 5 | Power Frequency Withstand Voltage (Vacuum Interrupter / Isolation Gap) | 118kV |
| 6 | Lightning Impulse Withstand Voltage (Phase-to-Phase / Phase-to-Ground) | 185kV |
| 7 | Lightning Impulse Withstand Voltage (Vacuum Interrupter / Isolation Gap) | 215kV |
| 8 | Rated Short-Circuit Current Interruption Cycles | 30 Times |
| 9 | Rated Operating Sequence | 0-0.3s-C0-180s-CO |
