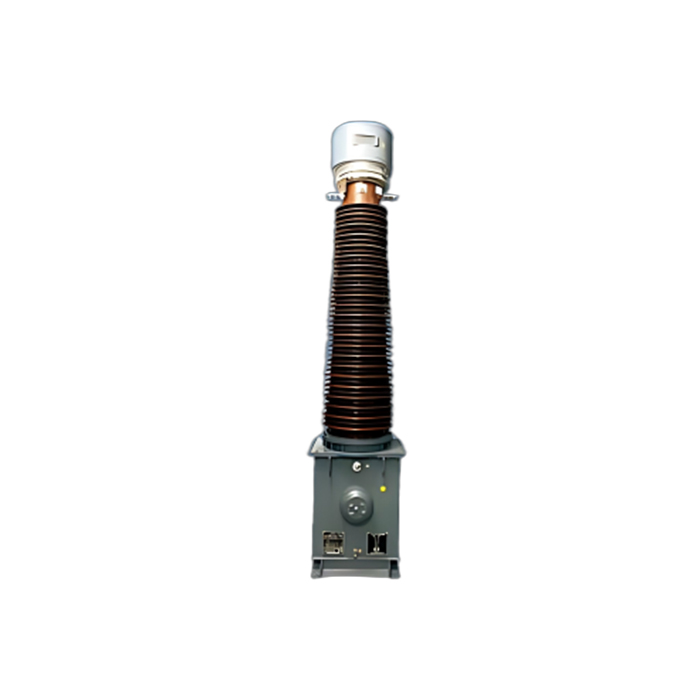

Oil-immersed type current transformer
Category: Switchgear & HV CT
Brand: JGGY Electric
Model: LB7-220(W1)
Power: 220KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
Introduction
This type of current transformer is applicable to electric power systems of 220kV and 5OHz, used for current, electric energy measuring and relaying protection.
The product is equipped with metal expander, ful-sealed structure, primary winding has U-shaped capacitor type insulation structure, low dielectric dissipation rate, low partial discharge quantity, secondary winding usually has 4~6 windings, class can be combined at random, we could produce current transformers of measurement class accuracy of 0.2S for special purposes according to user's requirements.

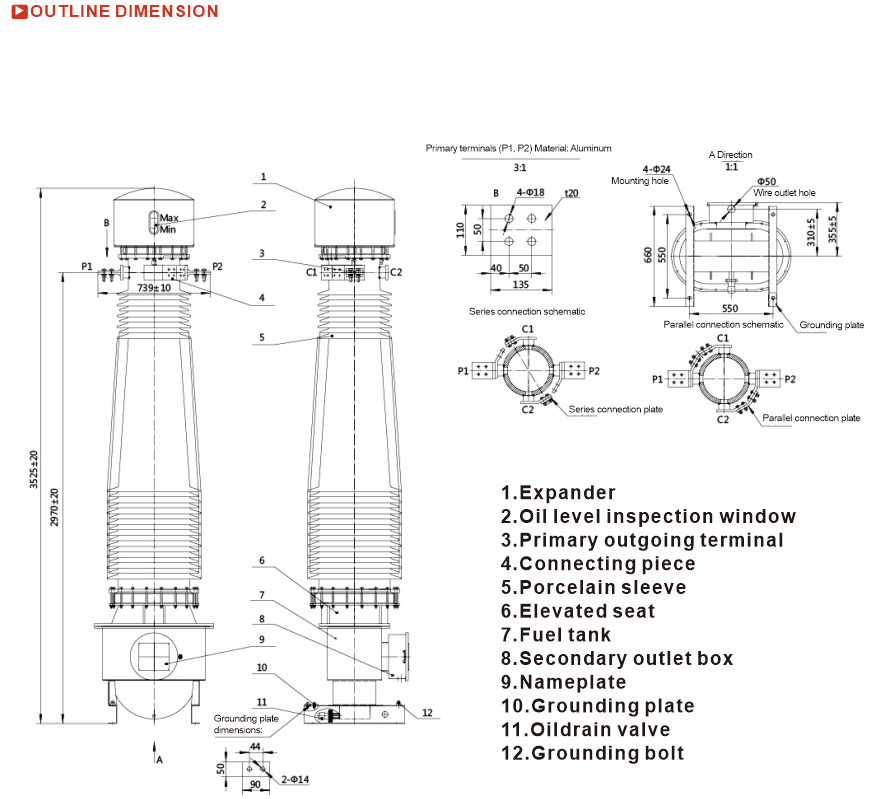

This type of current transformer is of outdoor type, LB7-220 s suitable for areas of altitude up to 1700m; LB7-220W type is suitable for polluted areas of altitude up to 1700m, ambient temperature is -30°C +40°C, outline and installation dimensions as shown in diagram.
The product adopts inverted structure, is composed of shell, explosion- proof sheet, machine body, bushing, base, density relay and other parts, there is shielding part inside the product that is used to improve the electric field, the secondary lead wire is connected in an airtight junction box, the shell can be divided into tee type and bell jar type two types.
The product adopts inverted structure, is composed of shell, explosion- proof sheet, machine body, bushing, base, density relay and other parts, there is shielding part inside the product that is used to improve the electric field, the secondary lead wire is connected in an airtight junction box, the shell can be divided into tee type and bell jar type two types.
The product adopts inverted structure, is composed of shell, explosion- proof sheet, machine body, bushing, base, density relay and other parts, there is shielding part inside the product that is used to improve the electric field, the secondary lead wire is connected in an airtight junction box, the shell can be divided into tee type and bell jar type two types.
The product adopts inverted structure, is composed of shell, explosion- proof sheet, machine body, bushing, base, density relay and other parts, there is shielding part inside the product that is used to improve the electric field, the secondary lead wire is connected in an airtight junction box, the shell can be divided into tee type and bell jar type two types.
Applicable for both indoor and outdoor Ambient temperature: max temperature +40℃,min temperature -40℃ Altitude:<1000m(when the altitude exceeds 1000m,the two parties shall negotiate to reach an agreement) Class of pollution: class II , III , IV
Applicable for both indoor and outdoor Ambient temperature: max temperature +40℃,min temperature -40℃ Altitude: & lt;1000m (when the altitude exceeds 1000m, the two parties shall negotiate to reach an agreement) Class of pollution: class II , III , IV
Applicable for both indoor and outdoor Ambient temperature: max temperature +40℃,min temperature -40℃ Altitude: & lt;1000m (when the altitude exceeds 1000m, the two parties shall negotiate to reach an agreement) Class of pollution: class II , III , IV
Applicable for both indoor and outdoor Ambient temperature: max temperature +40℃,min temperature -40℃ Altitude: & lt;1000m (when the altitude exceeds 1000m, the two parties shall negotiate to reach an agreement) Class of pollution: class II , III , IV
LVB-220W2 type inverted type current transformer is applicable to power systems of 5oOHz and 220W, used for current, electric energy and relaying protection.
This type of current transformer is applicable to electric power systems of 220kV and 5OHz, used for current, electric energy measuring and relaying protection.
This type of transformer is of outdoor type, is applicable to electric power systems of 5oHz and 220ky, used for current, electric energy measuring and relaying protection.
This type of transformer is applicable to electric power systems of 50 Hz and 110 kV, used for current, electric energy measuring and replaying protection.
This type of transformer is applicable to electric power systems of 50 Hz and 110 kV, used for current, electric energy measuring and replaying protection.
This type of transformer is applicable to electric power systems of 50 Hz and 110 kV, used for current, electric energy measuring and replaying protection.
This type of transformer is applicable to electric power systems of 50 Hz and 110 kV, used for current, electric energy measuring and replaying protection.
LVB- 110W2 type inverted type current transformer is applicable to power systems of 5oOHz and 220k, used for current, electric energy and relaying protection.
current transformer adopts the structure of epoxy resin vacuum casting full-seal transfixion
used for measurement of current and electric energy as well as relay protection in the AC eircuit of rated frequeney sOHz and rated voltage 10kV.
This current transformer is of whole sealing casting insulation pillar type
