Category: Switchgear & HV CT
Brand: JGGY Electric

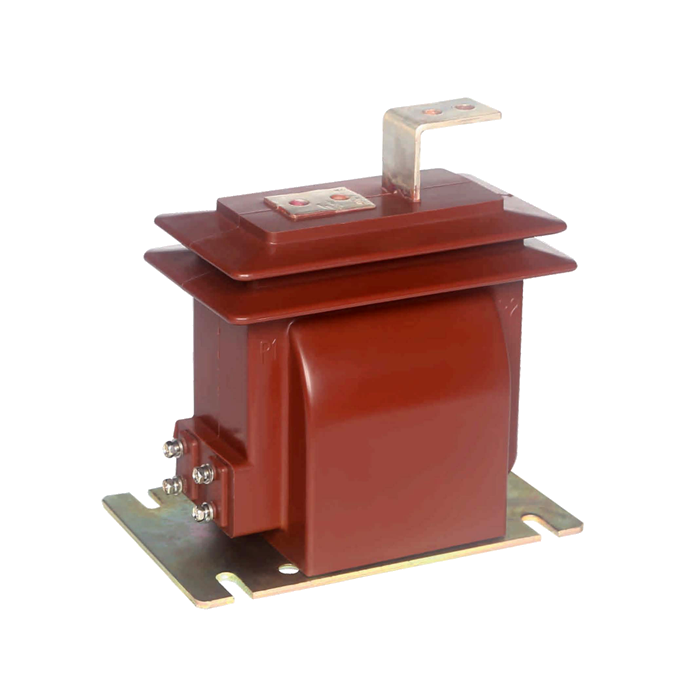

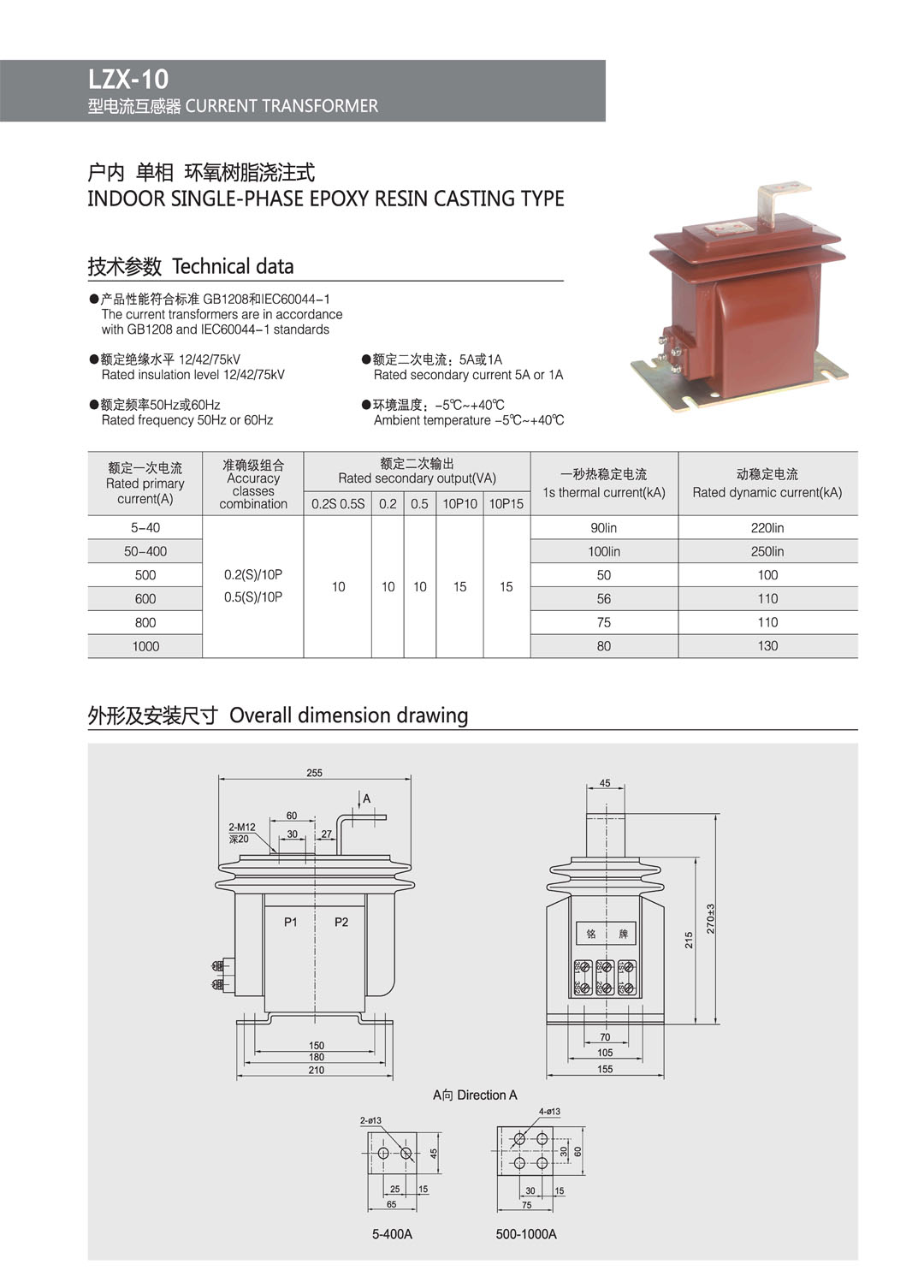

Model: LZX-10
Power: 10KV
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
The transformer is one of import electrical appliances in electric system. It's similar to power transformer and also used to transformer voltage or current in the circuit. However, transforming voltage and current by power transformer aims at transferring electric energy while transforming voltage and current by transformer aims at measuring and monitoring voltage or current in the circuit. Generally, power transformer owns large capacity as well as large change difference of voltage or current. While transformer owns small capacity as well as smaller change difference of voltage or current. In measuring circuit. The transformer that transforms current and supplies electricity for current meter and relay is called current transformer. The transformer that transforms voltage and supplies electricity for voltage meter and relay is called voltage transformer.
Applicable working conditions
1. The height above sea level is not above 1000m. (Please indicate height above sea level if it is used in high land area).
2. Max.change of environment temperature doesn't exceed 5℃ to 40℃. (If there is any requirement. Please indicate in the order).
3. Ordinary products can be used in the area with relative humidity not above 85%.
4.There is no gas, steam, chemical sedimentation, dust or dirt or other explosive and corrosive medium that seriously affect transformer at installation site. There is no serious vibration or bump. Either.
Precautions
1. While the primary current goes through current transformer, the open circuit of secondary winding is not allows, other wise high voltage will produce and affect the performance of product.
2. The short circuit of secondary winding of voltage transformer is not allowed. Otherwise the transformer will be burned.
3. The repeated power frequency withstand voltage test of primary winding shall be conducted under 80% of stipulated test voltage value.
current transformer adopts the structure of epoxy resin vacuum casting full-seal transfixion
used for measurement of current and electric energy as well as relay protection in the AC eircuit of rated frequeney sOHz and rated voltage 10kV.
This current transformer is of whole sealing casting insulation pillar type
Category:Switchgear&HVCTBrand:JGGYElectricModel:LA-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofPya
Category:Switchgear&HVCTBrand:JGGYElectricModel:LAZBJ-10Power:10KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LCZ-35Power:35KVFOBPort:Ningbo/ShanghaiTermsofPy
Category:Switchgear&HVCTBrand:JGGYElectricModel:LDBJ9-40Power:40KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LDJ1-35Power:35KVFOBPort:Ningbo/ShanghaiTermsofP
Category:Switchgear&HVCTBrand:JGGYElectricModel:LDJ-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofPy
Category:Switchgear&HVCTBrand:JGGYElectricModel:LFS-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofPy
Category:Switchgear&HVCTBrand:JGGYElectricModel:LMZB3-10Power:10KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LQJ-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofPy
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZJ8-10Power:10KVFOBPort:Ningbo/ShanghaiTermsofP
It's similar to power transformer and also used to transformer voltage or current in the circuit.
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZB7-35Power:35KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZB9-24Power:24KVFOBPort:Ningbo/ShanghaiTermsof
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZBJ4-35Power:35KVFOBPort:Ningbo/ShanghaiTermso
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZBJ9-12Power:12KVFOBPort:Ningbo/ShanghaiTermso
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZBJ9-35QPower:35-40KVFOBPort:Ningbo/ShanghaiTe
current transformer is of epoxy resin vacuum casting fully-enclosed support-type
Category:Switchgear&HVCTBrand:JGGYElectricModel:LZZJ-10QPower:10KVFOBPort:Ningbo/ShanghaiTermsof
A steel box oil-immersed, indoor outdoor dual-use current transformer
be used along with ZW32 series high voltage vacuum circuit breaker.
Outdoor 35KV medium voltage current transformer
outdoor full closed support type resin casting insulated current transformer
Pillar type fully enclosed outdoor pouring insulation current transformer
This type of transformer can be divided into single and double changes; In a double change to exchange, to meet the needs of different grid capacity.
35KV outdoor single phase epoxy resin casting type current transformer
This type of transformer is suitable for current and energy measurement and relay protection in 50Hz and 66KV power systems.
This type of transformer is suitable for current and energy measurement and relay protection in 50Hz and 66kV power systems.
This type of transformer is suitable for current and energy measurement and relay protection in 50Hz and 66kV power systems.
This series of current inductors includes LB-60W2 LB-66W2 (LB-72.5W2) LB6-110W2 (LB9-126W2) LB6-120W2 (LB9-123W2), LB-132W2 LB138W2 (LB-145W2) and other models, available for 60 ~145KV, 5060H power system is used for current, energy measurement and relay protection.
This series of products is divided into: ordinary type and cast aluminum type according to the fuel tank material.
