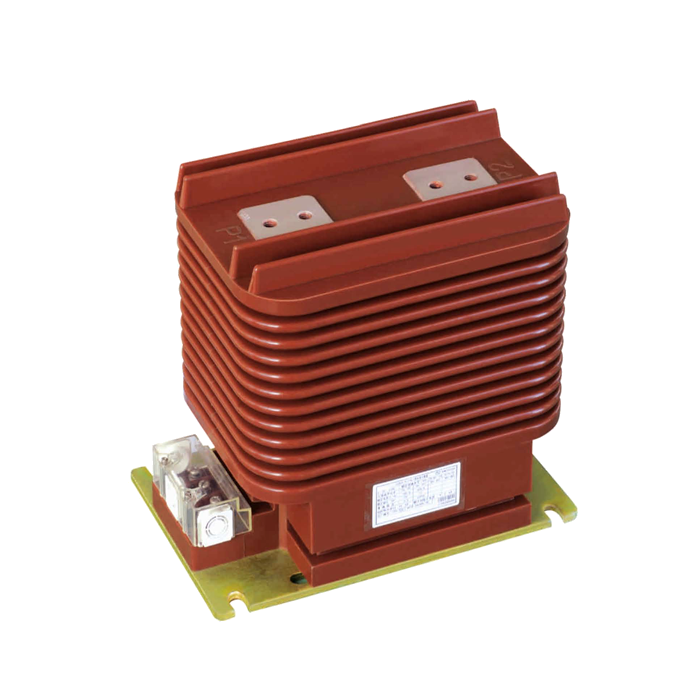

10kV high Current Voltage transformer
The performance of products is conformed to IEC standard and GB20840.2-2014 Current Transformer.
Rated insulation level: 12/42/75kV
Load power factor; cosφ-0.8
Rted frequency: 50Hz
Rated secondary current: 5A,1A
Partial discharge level: In conformity toGB5583-85 standard,its partial discharge is not more than 20PC.

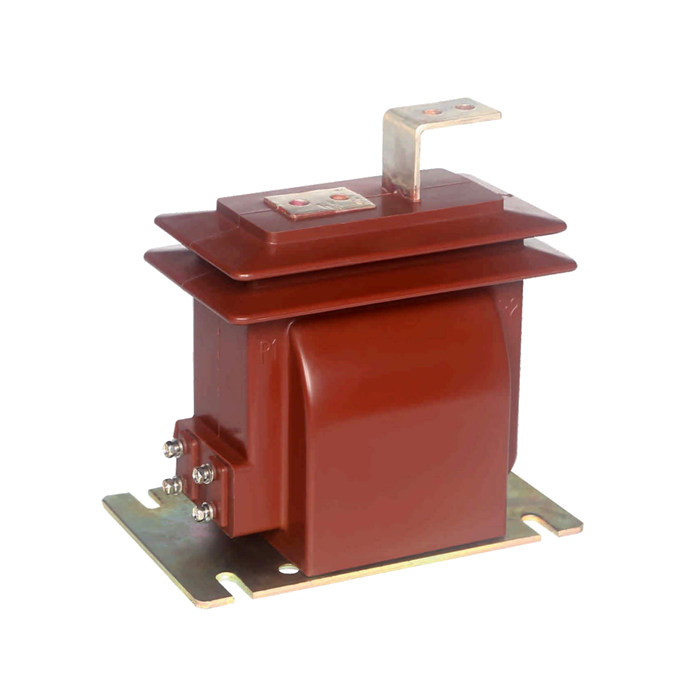

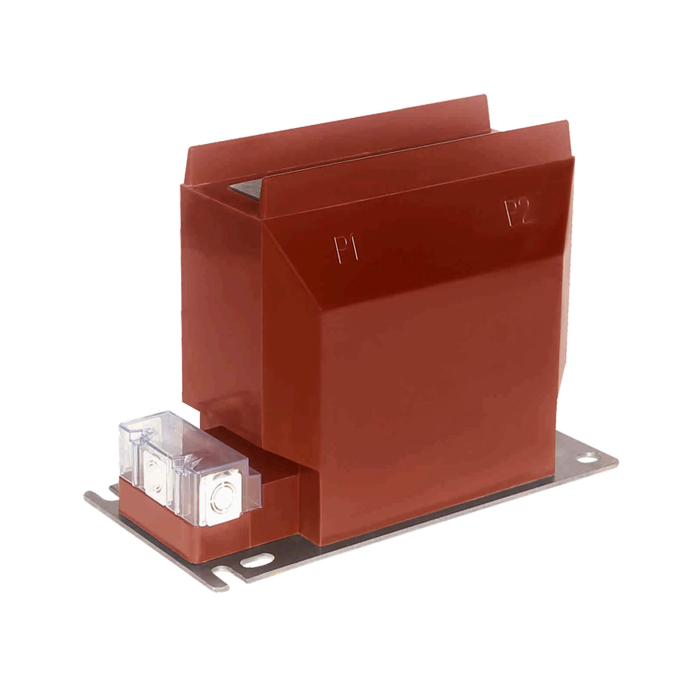

current transformer adopts the structure of epoxy resin vacuum casting full-seal transfixion
used for measurement of current and electric energy as well as relay protection in the AC eircuit of rated frequeney sOHz and rated voltage 10kV.

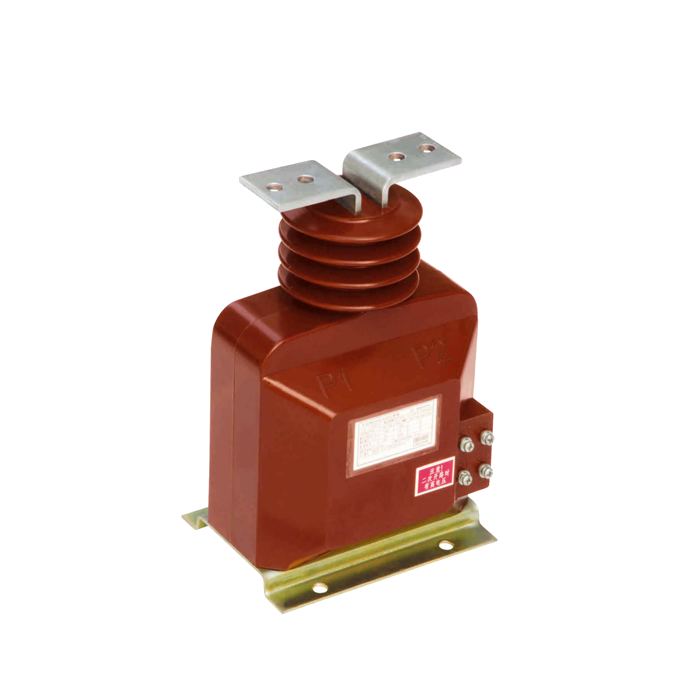

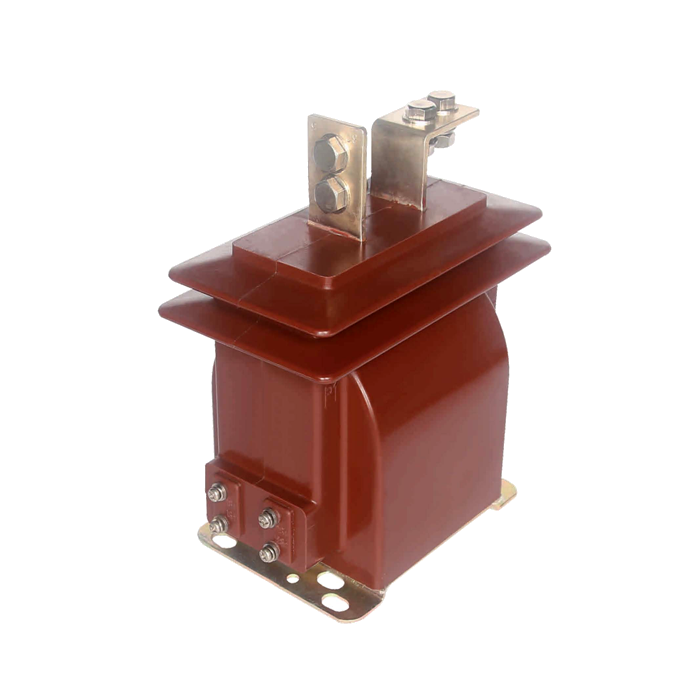

current transformer is of epoxy resin vacuum casting fully-enclosed support-type

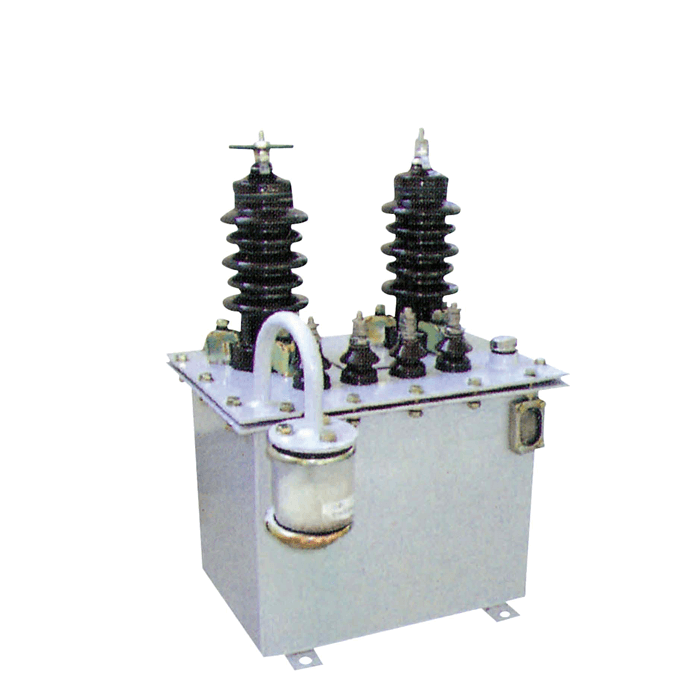

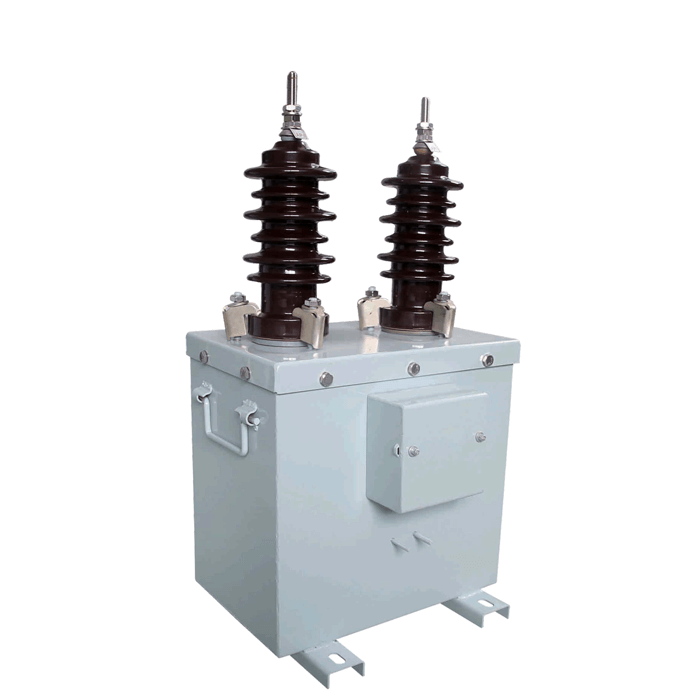

A steel box oil-immersed, indoor outdoor dual-use current transformer
be used along with ZW32 series high voltage vacuum circuit breaker.
Outdoor 35KV medium voltage current transformer

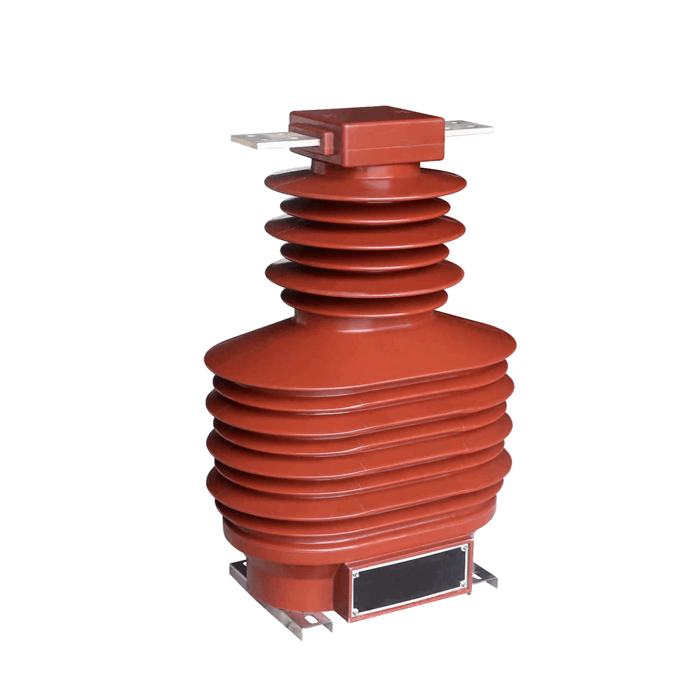

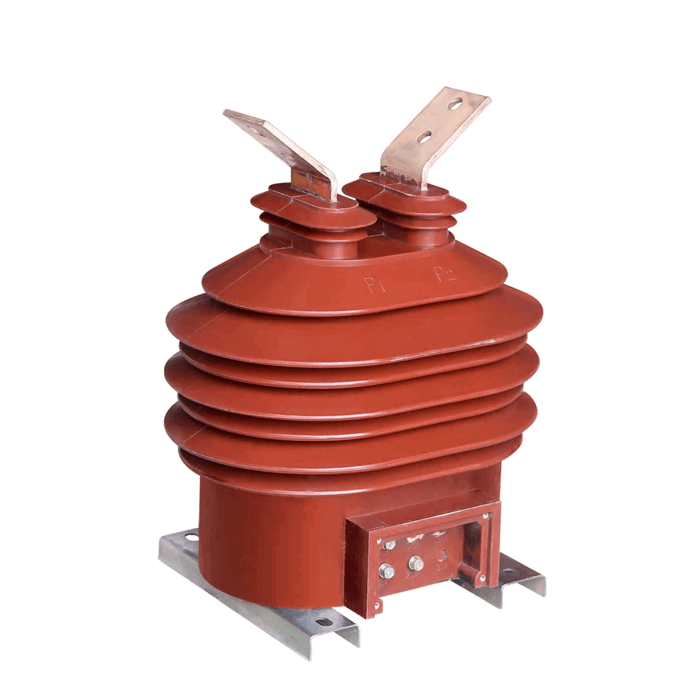

outdoor full closed support type resin casting insulated current transformer

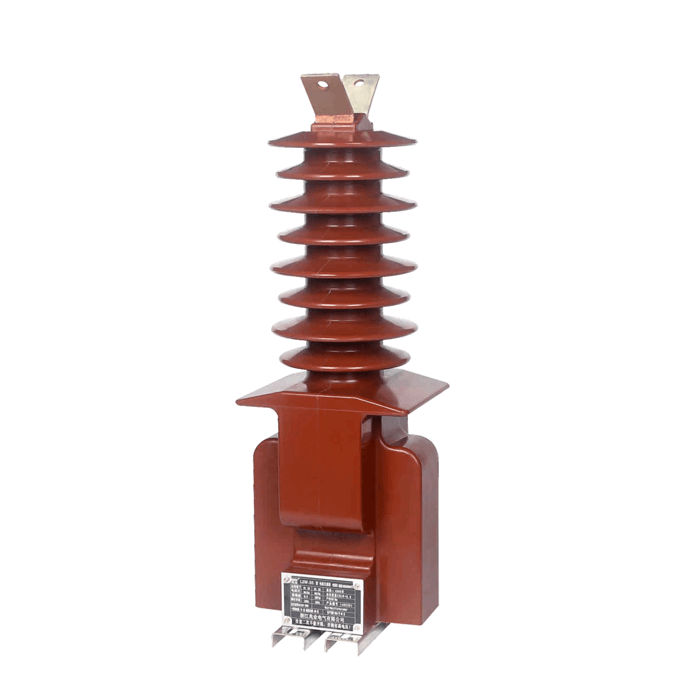

Pillar type fully enclosed outdoor pouring insulation current transformer
35KV outdoor single phase epoxy resin casting type current transformer
