Product Description

The product’s advantages

Upgradability

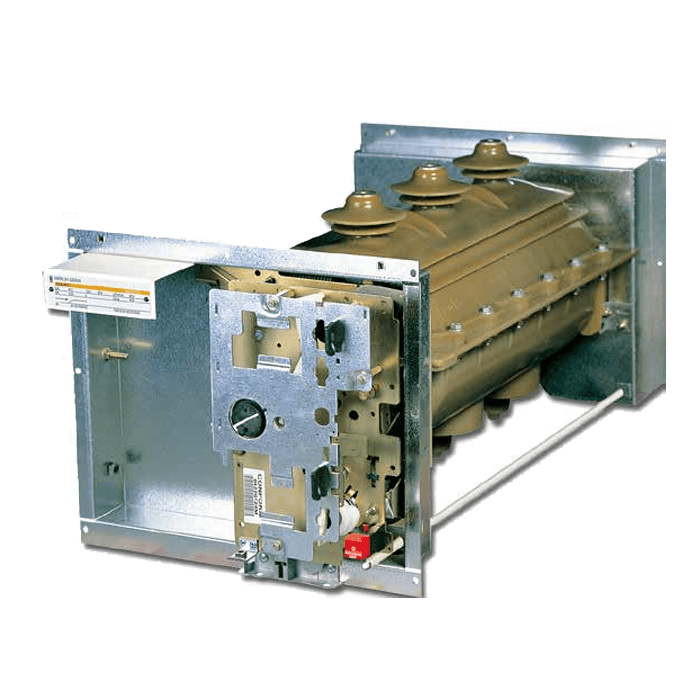

LBSkit, a comprehensive product

n A Comprehensive product covering your present and future requirements

n A Design adapted to the extension of your units

n A Catalogue of components for all your applications

n A Product designed to be in compliance with standards constraints

n Options to anticipate the control and monitoring of your units.

Compactness

LBSkit, an optimised product

n Compact components, for reduced increment units

n Rationalised space requirement for switchboard installation.

Maintenance

LBSkit, a product with reduced maintenance

n The active parts (breaking and earthing) are integrated in an SF6-filled, “sealed for life” unit

n The control mechanisms, are intented to function with reduced maintenance under normal operating conditions

n Enhanced electrical endurance when breaking.

Ease of installation

LBSkit, a simple product to incorporate

n Reduced dimensions and weights

n A solution adapted to cable connection

n Simplified switchboard busbar connection.

Ease and safe to operate

LBSkit, a well-proven product

n A three position switch to prevent incorrect operating

n The earthing disconnector has full closing capacity

n Positive breaking of position indicators

n Clear and animated display mimics

n Switching lever with an “anti-reflex” function.

LBSkit: a product designed with control and monitoring in mind

LBSkit is perfectly adapted to control and monitoring applications. Motorised, option available, LBSkit combines with remote control interface. You, therefore, benefit from a ready-to connect unit that is easy to incorporate providing guaranteed operation.

LBSkit: a product with adapted fuse-switch protection

With the LBSkit, Schneider Electric proposes components for MV protections with fuses. Fusarc CF fuse range is an excellent solution to protect various types devices such as MV transformers, motors, capacitors, public and industrial distribution networks.

Standards

LBSkit units meet all the following recommendations:

Switch:

IEC62271-103: High voltage switches - Part 1: switches for rated voltages above 1 kV and less or equal to 52 kV.

Disconnector:

IEC 62271-102: High-voltage alternating current disconnectors and earthing  switches.

Switch /disconnector:

IEC 62271-200: A.C. metal-enclosed switchgear and controlgear for rated voltage above 1 kV and up to including 52 kV.

VPIS:

IEC 62271-206: High-voltage prefabricated switchgear and controlgear assemblies Voltage presence indicating systems

General characteristics

The making capacity is equal to 2.5 times the short-time withstand current.

(*) Equipped referring to installation guide, and setting up at an altitude below 1000 m.

(**) Depending on fuse characteristics, and on using of Schneider Electric Fusarc CF fuses.
