Product Description

The JGGY’s experience extends over 35 years in SF6 technology for Medium Voltage switchgear. This gives you the advantage of unique experience, that of a world leader, with over 2,700,000 SF6 Medium Voltage units installed throughout the world. Putting this experience at your service and remaining attentive to your requirements is the spirit of active partnership that we want to develop in offering you the LBSkit.

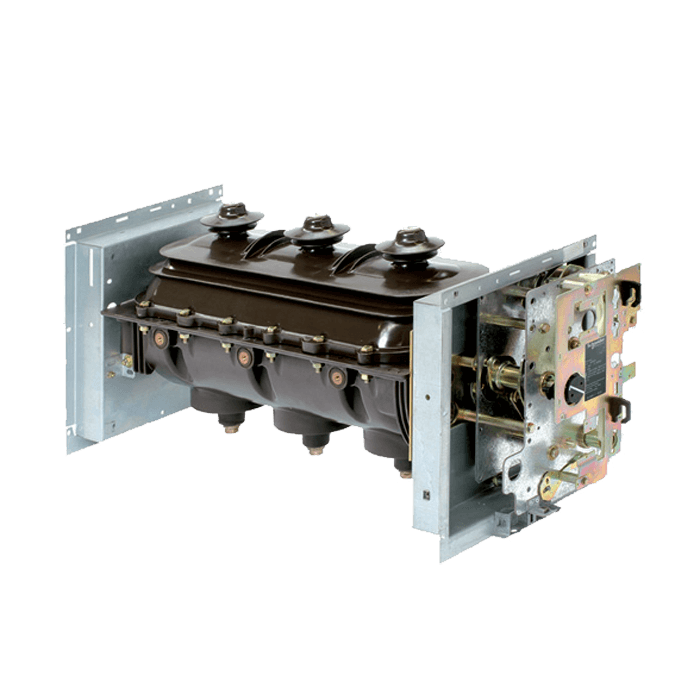

LBSkit is a product to let you develop harmonized functions equipped with SF6 breaking technology switchgear. These functions allow you to produce all your Medium Voltage substation requirements up to 36kV.The result of in-depth analysis of your requirements, both now and in the future, LBSkit means that you can take advantage of all the features of both a modern and proven technology.

The product’s advantages

Upgradability

LBSkit, a comprehensive product

n A Comprehensive product covering your present and future requirements

n A Design adapted to the extension of your units

n A Catalogue of components for all your applications

n A Product designed to be in compliance with standards constraints

n Options to anticipate the control and monitoring of your units.

Compactness

LBSkit, an optimised product

n Compact components, for reduced increment units

n Rationalised space requirement for switchboard installation.

Maintenance

LBSkit, a product with reduced maintenance

n The active parts (breaking and earthing) are integrated in an SF6-filled, “sealed for life” unit

n The control mechanisms, are intented to function with reduced maintenance under normal operating conditions

n Enhanced electrical endurance when breaking.

Ease of installation

LBSkit, a simple product to incorporate

n Reduced dimensions and weights

n A solution adapted to cable connection

n Simplified switchboard busbar connection.

Ease and safe to operate

LBSkit, a well-proven product

n A three position switch to prevent incorrect operating

n The earthing disconnector has full closing capacity

n Positive breaking of position indicators

n Clear and animated display mimics

n Switching lever with an “anti-reflex” function.

LBSkit: a product designed with control and monitoring in mind

LBSkit is perfectly adapted to control and monitoring applications. Motorised, option available, LBSkit combines with remote control interface. You, therefore, benefit from a ready-to connect unit that is easy to incorporate providing guaranteed operation.

LBSkit: a product with adapted fuse-switch protection

With the LBSkit, Schneider Electric proposes components for MV protections with fuses. Fusarc CF fuse range is an excellent solution to protect various types devices such as MV transformers, motors, capacitors, public and industrial distribution networks.

General characteristics

Model		SC6-7.2	SC6-12	SC6-17.5	SC6-24	SC6-36
Rated voltage (kV)		7.2	12	17.5	24	36
Insulation level *
50 Hz - 1 min (kV rms)	Insulation	20	28	38	50	70
	Isolation	23	32	45	60	80
1.2/50 μs (kV peak)	Insulation	60	75	95	125	170
	Isolation	70	85	110	145	195

Short-time withstand current
Switch (kA/1 s)	25	630 A
	20	630 A
	16	630 A
	12.5	630 A
Disconnector (kA/1 s)	25	630 - 1250 A		1250 A
	20	630 - 1250 A
	16	630 - 1250 A
	12.5	630 - 1250 A

Maximum breaking capacity
Transformer off load (A)	16
Cables off load (A)	31.5		50
Switch (A)	630
Fuse-switch ** (kA)	25	20

The making capacity is equal to 2.5 times the short-time withstand current.

(*) Equipped referring to installation guide, and setting up at an altitude below 1000 m.

(**) Depending on fuse characteristics, and on using of Schneider Electric Fusarc CF fuses.

Endurance
Units	Mechanical endurance	Electrical   endurance
Switch	IEC62271-103	IEC62271-103
Fuse-switch	1000 operations Class M1	100 breaks at In, p.f. = 0.7 Class E3
Disconnector	IEC 62271-102 1000 operations
Temperatures
The products must be stored in a dry area free from dust and with limited temperature variations	. for stocking: from –40°C to +70°C . for working: from –5°C to +40°C . other temperatures, consult us
