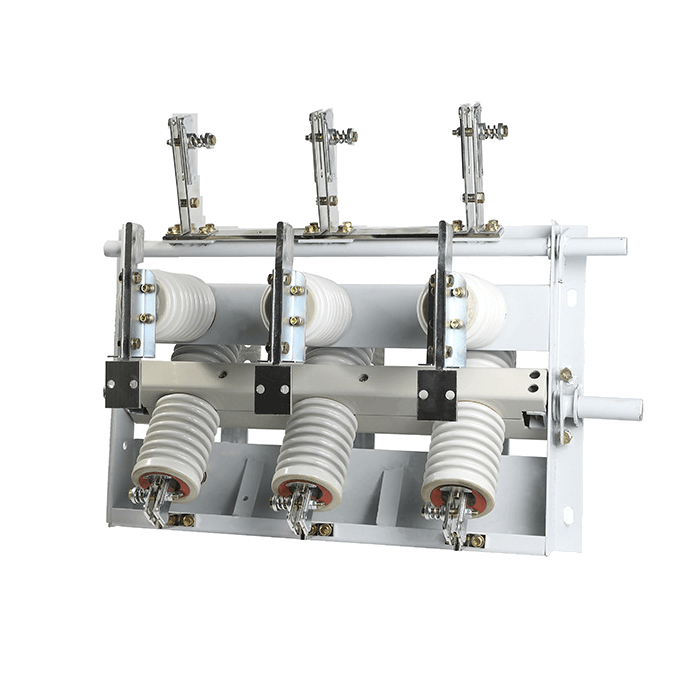

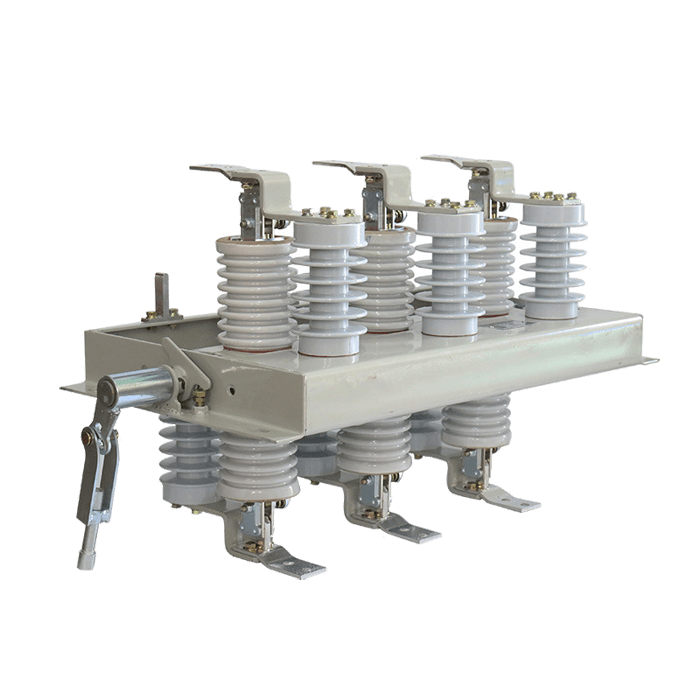

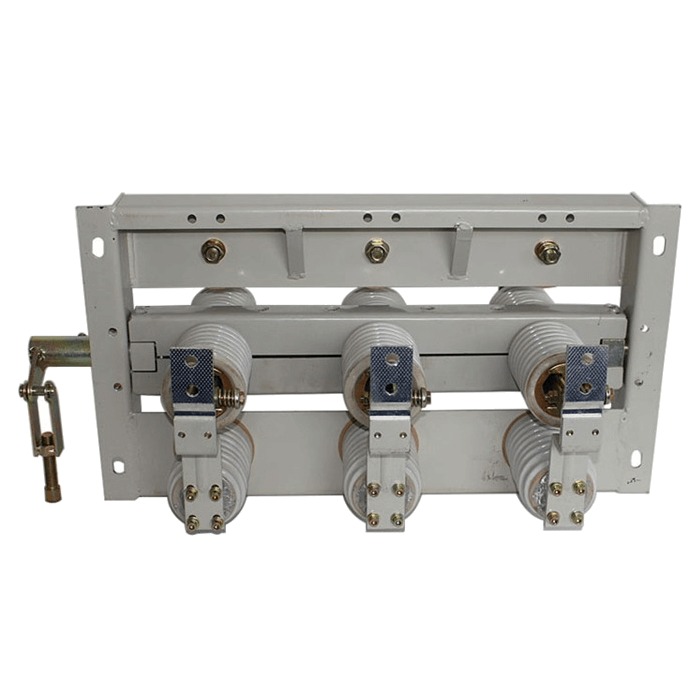

GN30-12(D) disconnect switch is an indoor electric apparatus of rated voltage 12kV, three-phase AC50/60Hz. It is used to make the break and transfer current for HV electric apparatus under situations with voltage and no-load. The switch applies rotary moving contact which is mounted on the switchgear easily. It adopts wall through the installation as well. It is made as per IEC62271-102
Category: Switchgear & High Voltage Disconnector
Brand: JGGY Electric
Model: GN30-12
Power: 12KV/ 630A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal

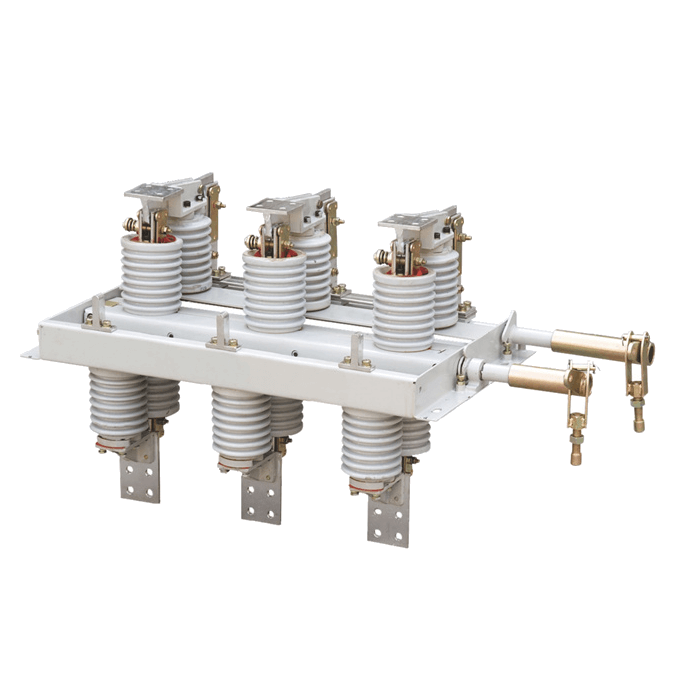

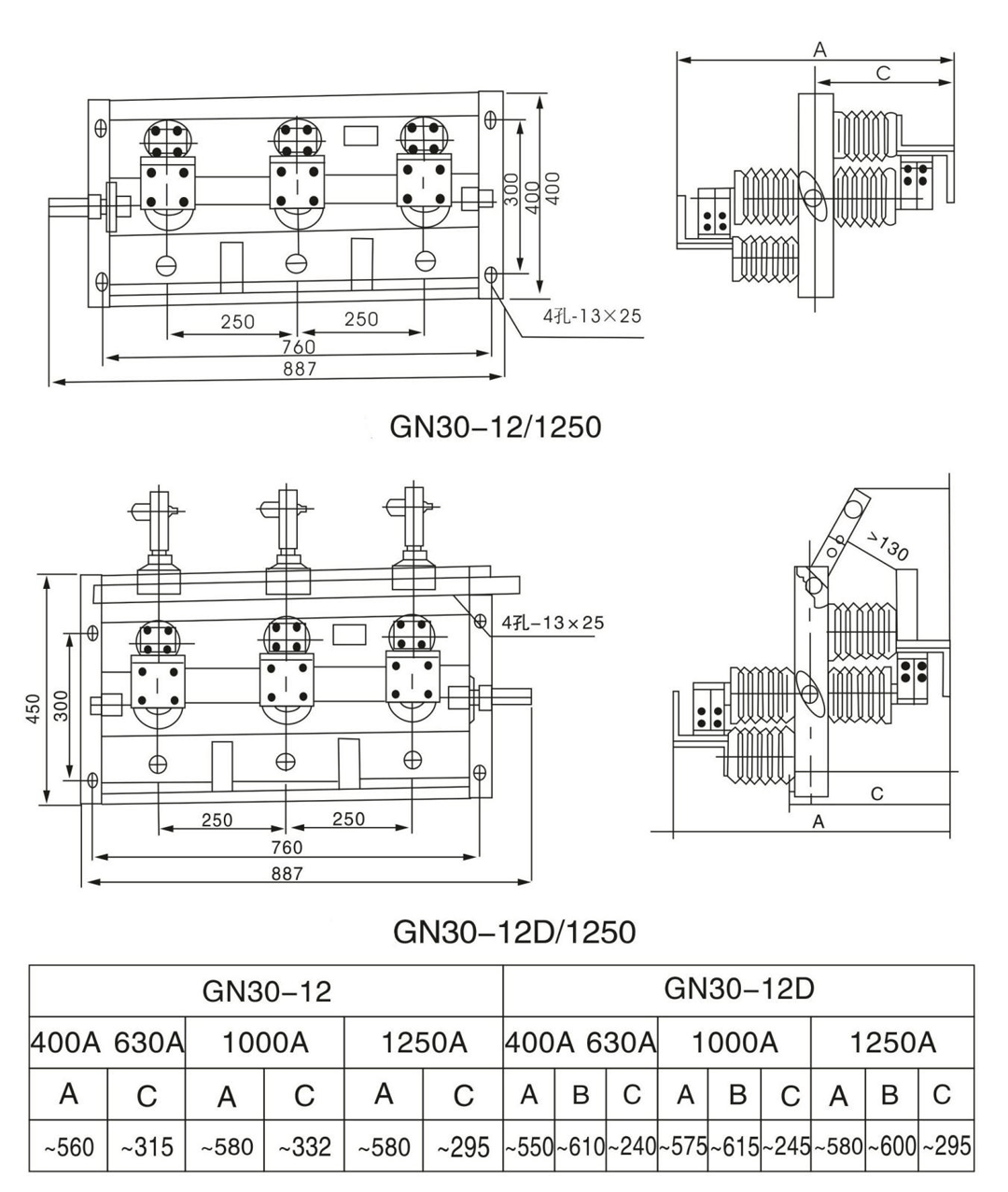

GN30-12 type rotary indoor high voltage isolating switch is a new type of touch rotating knife type isolating switch, the main structure in three-phase chassis of the upper and lower two plane, fixed two set of insulator and contact, by rotating contactor, so as to realize the switch of switching.
The use of environmental conditions .
1.No more than altitude of 1000 meters.
2.Ambient air temperature: From -25 to +40.
3.Air relative humidity:Daily average no greater than 95%;Monthly average no greater than 90%.
4.Amplitude:Seismic intensity not exceed degree 8.
5.Installation place: No fire, explosion, chemical corrosion and sharp shakes.
| Item | Model and specification | |||||
| GN30-12/400-12.5 | GN30-12/630-20 | GN30-12/1000-31.5 | GN30-12/1250-31.5 | GN30-12/(1600-3150)-40 | ||
| GN30-12D/400-12.5 | GN30-12D/630-20 | GN30-12D/1000-31.5 | GN30-12D/1250-31.5 | GN30-120/(1600-3150)-40 | ||
| Rated voltage(kV) | 12 | |||||
| Rated current(A) | 400 | 630 | 1000 | 1250 | 1600-3150 | |
| Rated short-time withstand current(kA) | 12.5 | 20 | 31.5 | 40 | ||
| Rated short-circuit duration(s) | 4 | |||||
| Rated peak withstand current(kA) | 31.5 | 50 | 80 | 100 | ||
| Rated insulating level | Rated 1min. PF | phase to phase/ to earth: 42, across open contacts: 49 | ||||
| withstand voltage(kV) | ||||||
| Lightning impulse | phase to phase/ to earth: 75, across open contacts: 85 | |||||
| withstand voltage(kV) | ||||||
indoor HV disconnect switch applies to power system of rated voltage below 12KV, AC 50/60Hz
indoor HV disconnect switch applies to power system of rated voltage 12KV, AC 50Hz switchgear
isolating switch, It is used to make the break and transfer current for HV electric apparatus under situations with voltage and no-load.
Indoor AC High Voltage Disconnect Switch Isolating Switch, used for 10 ~ 110 KV voltage of power system
This isolation switch is designed to meet the needs of the fixed type high-voltage cabinet, small-sized development
