GN19-12 indoor high-voltage isolation disconnector for MV switchgear

GN19-12 indoor high-voltage isolation high-voltage switchgear for rated voltage 12KV, AC 50Hz and below power system,

Category: Switchgear & High Voltage Disconnector

Brand: JGGY Electric

Model: GN19-12

Power: 12KV/ 630A

FOB Port: Ningbo/Shanghai

Terms of Pyament: Western Union,T/T,Paypal

GET A QUOTE

Product Details
Additional Information

Inquiry

Product Description

GN19-12 indoor high-voltage isolation high-voltage switchgear for rated voltage 12KV, AC 50Hz and below power system, equipped with Cs6-1 type human operator, as a case of voltage and no load, points, In conjunction with the circuit, there are also derived products anti-fouling type, high prototype and installation of live display devices.This series isolating switch is equipped with CS6-1 type manpower operating mechanism(disconnector with panel is a self-contained integrated operating mechanism)

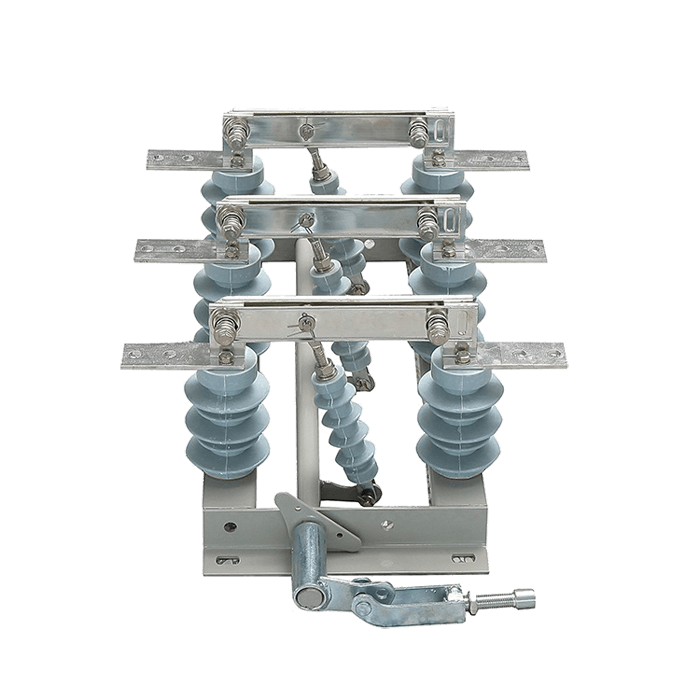

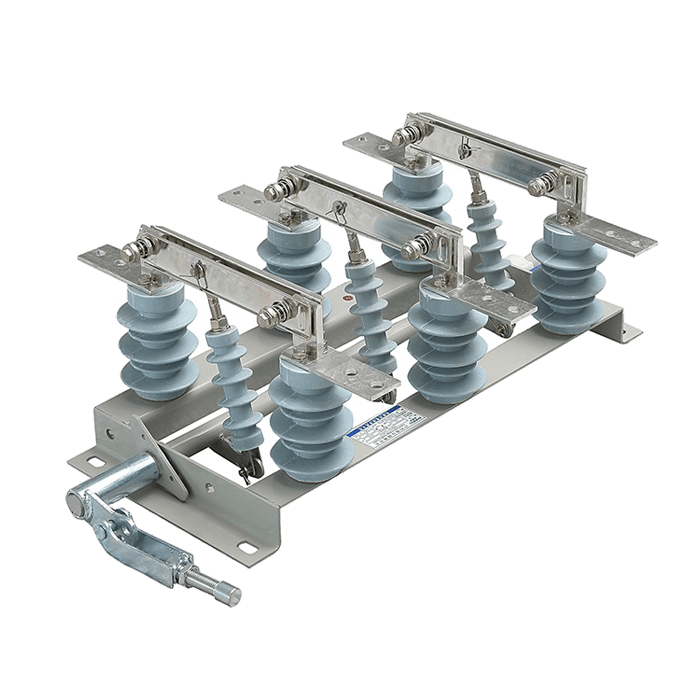

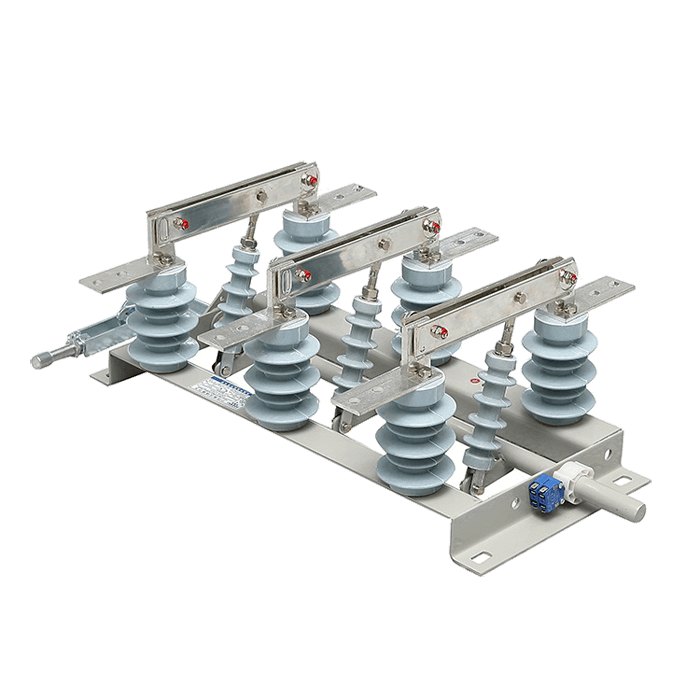

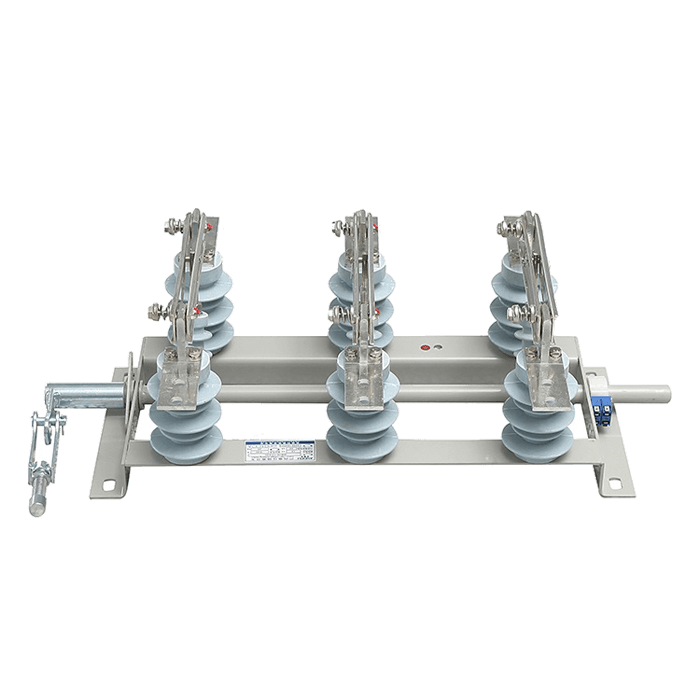

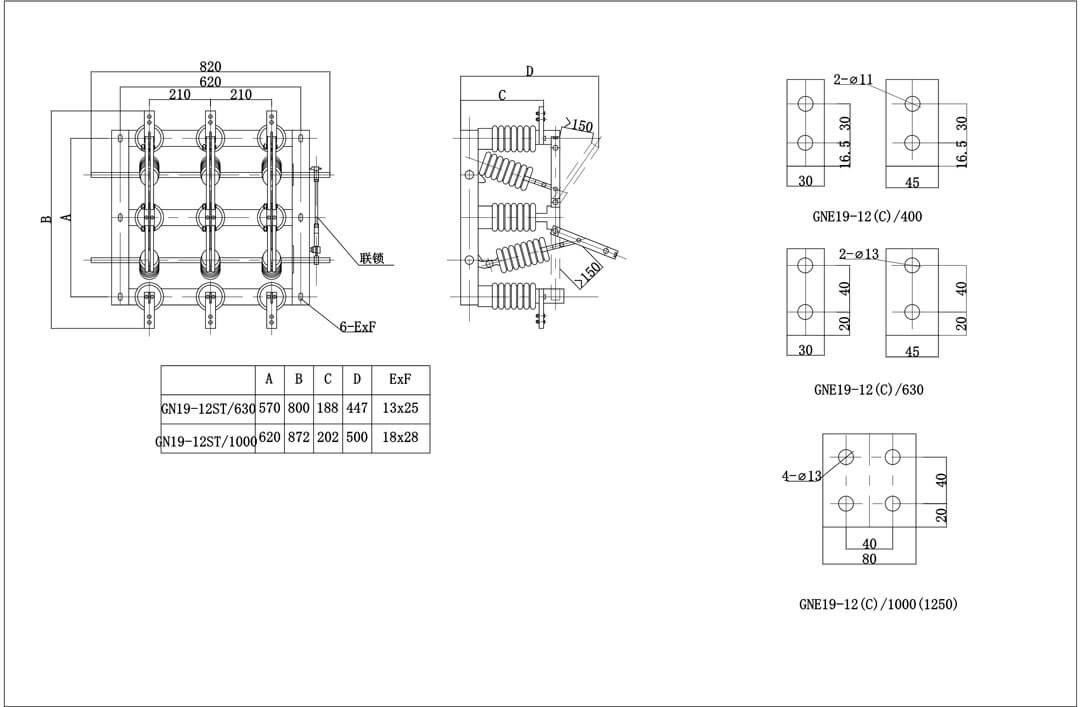

This series of isolation switches is a three-pole type and consists of a chassis, a shaft, a lever, a porcelain pillar insulator, a knife and a terminal board. The shaft is placed on the base frame, and three pairs of levers are welded on the shaft. The lever is made of a porcelain insulator and a knife necklace. The shaft protrudes from the base frame, any of which can be connected to the operating mechanism.

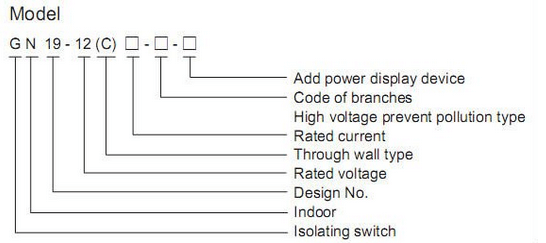

Type C is through the wall. Among them, C1 means rotating on the side of the wall; C2 means breaking on the wall side: C3 means both sides are on the wall side

Model No.	Rated voltage	Rated current (A)	Rated short time withstand current(4s) kA	Rated peak withstand current kA
GN19-12/400-12.5	12kV	400A	12.5	31.5
GN19-12/630-20	12kV	630A	20	50
GN19-12/1000-31.5	12kV	1000A	31.5	80
GN19-12/1250-12.5	12kV	1250A	31.5	80
GN19-12C/400-12.5	12kV	400A	12.5	31.5
GN19-12C/630-20	12kV	630A	20	50
GN19-12C/1000-31.5	12kV	1000A	31.5	80
GN19-12C/1250-31.5	12kV	1250A	31.5	80

Working Environment

1.The altitude: 1000m~3000m
2.The ambient temperature: -30°C~40°C
3.The relative humidity of air: monthly≤90°C,daily≤95°C
4.The wind pressure: ≤700pa(wind speed 34m/s)
5.Amplitude: earthquake degree 8
6.Environment degree: degree III
Cannot be use on the condition of the danger of fire and blast, heavy pollution, chemical etching, strong shake etc.

Project		Unit	Parameter
Rated Voltage		KV	12
1 min power frequency withstand voltage	To ground	KV	42
	Fracture	KV	48
Lightning impulse withstand voltage (peak)	To ground	KV	75
	Fracture	KV	85
Rated frequency		Hz	50
Rated current		A	400		630			1000 1250
Rated short-time withstand current		KA	16	20	16	20	25	20	25	31.5
Rated peak withstand current		KA	40	50	40	50	63	50	63	80
Rated short-time withstand current duration main knife / ground knife		s	4/2
Creepage distance		mm	300~380
Mechanical life		Times	2000
