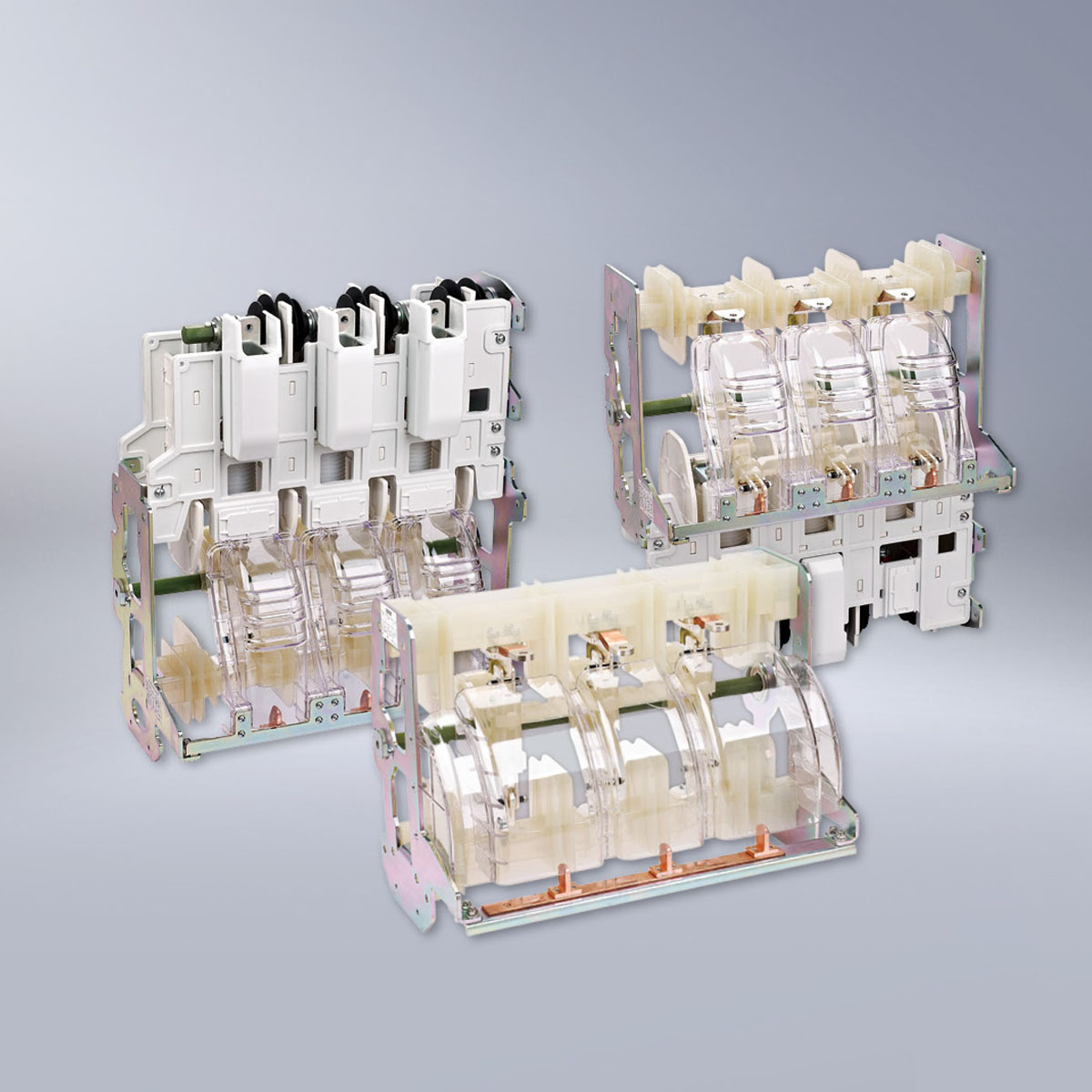

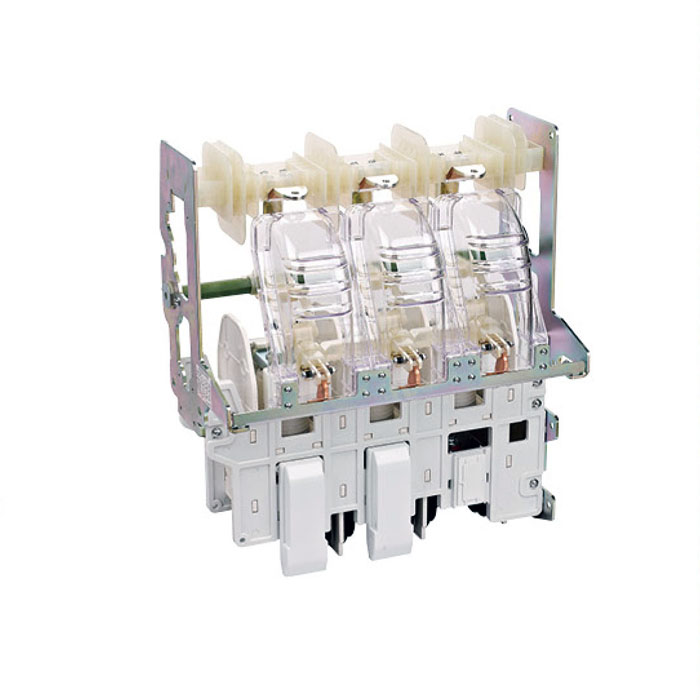

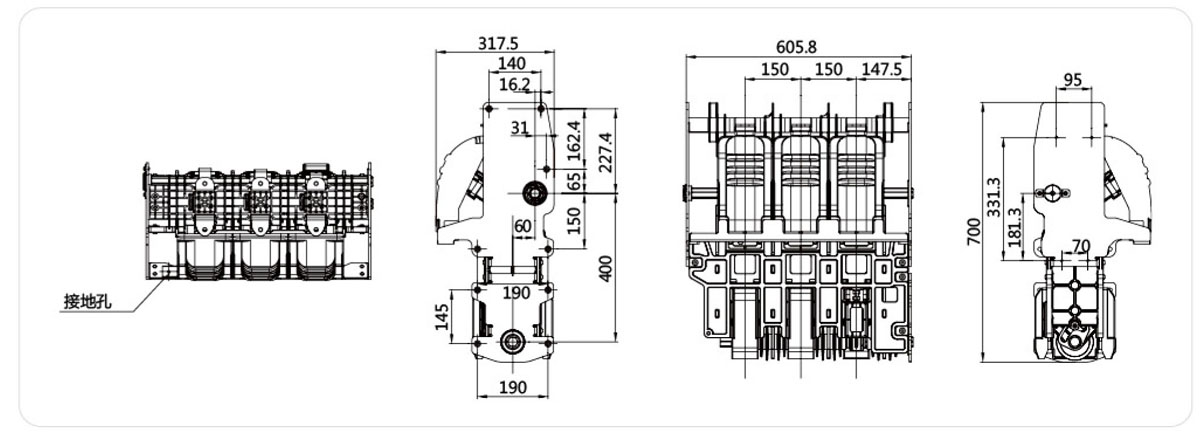

Circuit breaker with upper isolation Eco-Friendly SF₆-Free Switchgear
Category: Switchgear & High Voltage Products
Brand: JGGY Electric
Model: BHEDSSV-12/630A
Power: 12/24/40.5KV/630A....2500A
FOB Port: Ningbo/Shanghai
Terms of Pyament: Western Union,T/T,Paypal
| Items | NAME | Technical Parameters |
| 1 | Rated Voltage (kV) | 12 |
| 2 | Rated Current (A) | 630 |
| 3 | Rated Frequency (Hz) | 50 |
| 4 | Rated Short-Circuit Breaking Current (kA) | 20/25 |
| 5 | Rated Short-Circuit Making Current (Peak) (kA) | 50/63 |
| 6 | Rated Short-Time Withstand Current Duration (s) | 3 |
| 7 | Rated Short-Time Withstand Current (kA) | 20/25 |
| 8 | Rated Peak Withstand Current (kA) | 50/63 |
| 9 | Rated Short-Time Power-Frequency Withstand Voltage (Phase-to-Phase/Phase-to-Earth) (kV) | 42 |
| 10 | Rated Lightning Impulse Withstand Voltage (Phase-to-Phase/Phase-to-Earth) (Peak) (kV) | 75 |
| 11 | Rated Short-Time Power-Frequency Withstand Voltage (Across Isolating Distance) (kV) | 48 |
| 12 | Rated Lightning Impulse Withstand Voltage (Across Isolating Distance) (Peak) (kV) | 85 |
| 13 | Closing Operating Voltage (V) | DC220.110.48.24V |
| 14 | Opening Operating Voltage (V) | DC220.110.48.24V |
| 15 | Classification Class Based on Mechanical Endurance | M2 |
| 16 | Classification Class Based on Capability to Switch Capacitive Currents | C2 |
| 17 | Rated Dry Air Filling Pressure (Gauge Pressure at 20°C)MPa | 0.02 |
| 18 | Ingress Protection (IP) of the Cabinet Shell | IP4X |
| 19 | Ingress Protection (IP) of the Sealed Cabinet | IP67 |
| 20 | Rated Operating Sequence | O-0.3s-CO-180s-CO |
