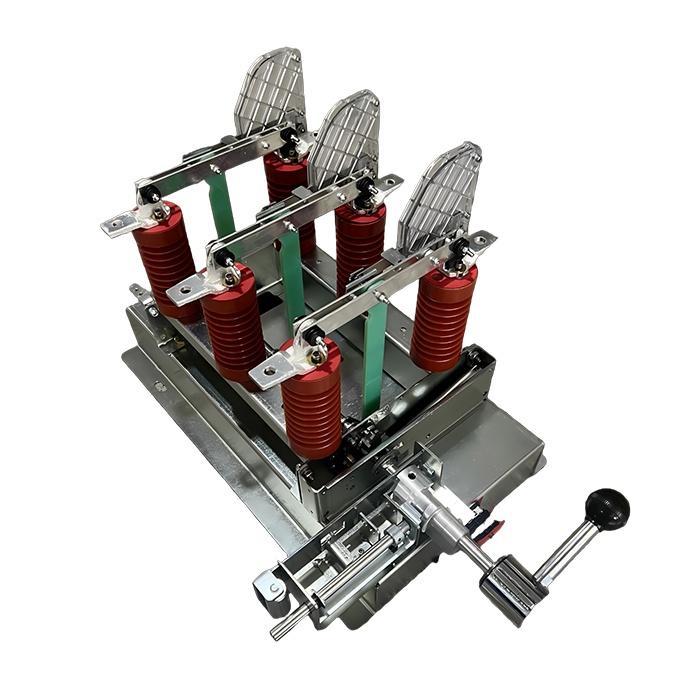

FN7-12D 12KV LBS indoor Medium voltage load break switch with earthing switch
ABB NAL series 12KV LBS medium voltage load break switch for RMU similar as
12KV MV Outdoor Off-Load overhead line isolator disconnector LBS load break switch
As a protection and control unit for power grid equipment and industrial and mining enterprise power design
Mainly used for opening closing the power system load current, overload current and short - circuit current
12KV MV VCB outdoor high voltage vacuum circuit breaker with controller
What is load break switch?
Load break switches are devices used to open an electrical circuit by isolating the source from the consumer. Whether they are manual, motorised or with a trip function, these devices ensure the on-load making, breaking and safety disconnection of low-voltage electrical circuits.
FN5-24 series 24KV LBS MV load break switch with earth switch or fuse holder for air RMU
Outdoor SF6 LBS sectionalizer load break switch, rubber bushing -terminal outlet
Indoor AC High Voltage SF6 Load Break Switch and LBS-Fuse Combination are used for the three-phase AC 50/60Hz RMU and terminal power station.
indoor HV air load break switch is a 3-phase AC 50Hz 12kV indoor switch equipment.
12KV LBS Outdoor disconnector air load break switch with cutout fuse, with strong arcing ability, reliable performance, long service life
FN7-24D 24KV LBS Medium voltage overload switch load break switch with earth switch
FKW18-12 Outdoor load break switch is used in outdoor 12/24/40.5kV three phase AC 50/60Hz power system, it composed of disconnect blade, arc extinguishing chamber and operating mechanism.
ABB NAL/FN18-24D 24KV LBS load break switch indoor air
FZN25/FZRN25 type indoor 12KV HV MV vacuum load break switch LBS
FN5-12D Indoor LBS 12KV MV air load break switch for RMU
Advantages of Load break switch
Load break switch, generally comes with the spring mechanism for switching ON & OFF the supply, however, option with vacuum circuit breaker is also available. Of course, option with Vacuum circuit breaker is costlier. Choice between these two totally depends on the customer. Load break switch with vacuum circuit breaker is more reliable option.
Load break switch with spring mechanism are generally provided with Fuse protection. And hence, every time a fault occurs, fuse needs to be replaced. On the other hand, if you are using Load break switch with vacuum circuit breaker, we only needs to Turn On the breaker.
Load break switch are also provided with the Earth Switch, which helps in grounding the charges, which can be present even after the switch is turned off.
What is the difference between isolator and load break switch?
Accordingly, the Circuit breakers have both while the Isolator or LBS has only breaking capacity. Isolator therefore used to isolate/disconnect/break load. To be switched on only under no load. ... In simple way the Load Break Switch used to cut off healthy circuits or to break / disconnect the load.
Difference between disconnector, circuit breaker and load break switch?
Isolator / disconnector. Only suitable for opening at no-load. If you open the switch on load, you'll draw an arc. Cheap.
Load-break switch. Can be opened and closed under load. Cannot make or interrupt fault current.
Circuit breaker. Can be opened and closed under load. Can make and break fault current. Expensive. Generally have heavy, spring-driven mechanisms that operate very forcefully and wear out quickly. Not meant to be operated frequently.
Contactor. A kind of load break switch that is meant to be frequently opened and closed under load, i.e. to control a direct-on-line motor. (Circuit breakers aren't rated for frequent operation - attempting to use a circuit breaker as a contactor will result in rapid wear and failure. See "Utilisation Category".)
Fuse-switch - a switch combined with a fuse. Comes in off-load or load-break types. Common in overhead distribution systems, in the form of the "expulsion drop-out fuse" which can be operated using a hook on the end of a long stick. Provides short-circuit and overload protection.
Fused contactor - A fuse in series with a contactor. The fuse protects the contactor against fault currents which might damage the contactor, by welding its contacts together. (See: "Type 2 co-ordination".) Common for control of HV motors.
